Changing Planting Rate Sprocket Combinations (with Seed Transmission)

Consult appropriate planting rate chart to determine desired sprocket combinations.

1. Remove retaining hook (A) from storage position.

A28902

720016ROM,PRC,I -19-20MAY93-1/2

2. Pull chain tightener (A) downward and place hook (B) on tightener.

3. Remove required number of rubber sprocket spacers (C).

4. Remove chain from sprockets. Slide desired driver and driven sprockets (D) and (E) into alignment with chain tightener and replace chain.

5. Remove hook from chain tightener. Reposition hook in storage position by pressing it into clip (F).

6. Replace rubber sprocket spacers on upper and lower shafts.

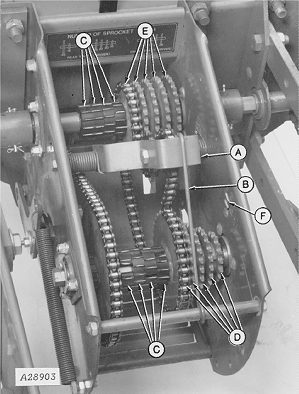

A-Chain Tightener
B-Retaining Hook
C-Rubber Sprocket Spacers
D-Driver Sprockets
E-Driven Sprockets
F-Clip

A28903

720016ROM,PRC,I -19-20MAY93-2/2
