OMA64737: 1770 MaxEmerge® Plus Drawn Conservation 12-Row Wide and 16-Row Narrow Flex-Fold Planters, Block File: 720016ROM_TS_A7_19

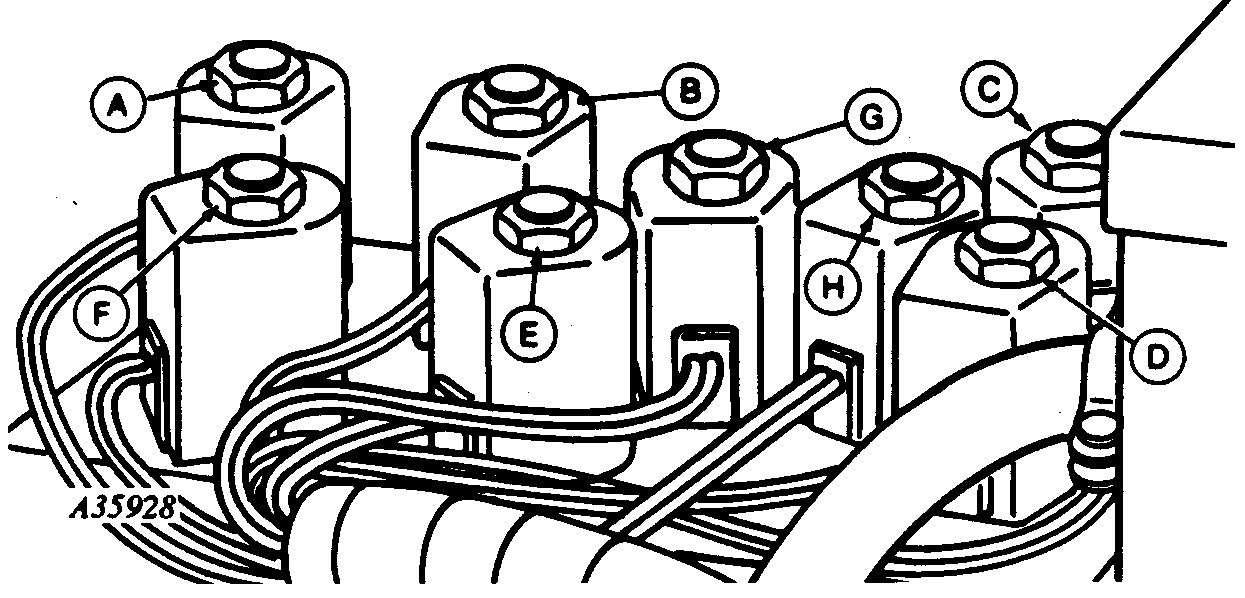

Center Solenoid and Valve Assembly

A-5P Solenoid and Valve
B-7R Solenoid and Valve

C-8P Solenoid and Valve
D-7P Solenoid and Valve

E-8R Solenoid and Valve
F-5R Solenoid and Valve

G-10 Solenoid and Valve
H-10A Solenoid and Valve

720016ROM,TS,A7 -19-20MAY93-1/3

To check the solenoids and valves, see "Checking Solenoids" in this section.

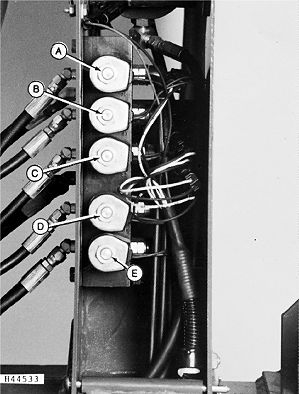

A-2P Solenoid and Valve
B-4P Solenoid and Valve
C-6R Solenoid and Valve
D-4R Solenoid and Valve
E-6P Solenoid and Valve

Right-Wing Solenoid and Valve

720016ROM,TS,A7 -19-20MAY93-2/3

To check the solenoids and valves, see "Checking Solenoids" in this section.

A-1P Solenoid and Valve
B-3P Solenoid and Valve
C-3R Solenoid and Valve

Left-Wing Solenoid and Valve

720016ROM,TS,A7 -19-20MAY93-3/3
