Drive Wheels

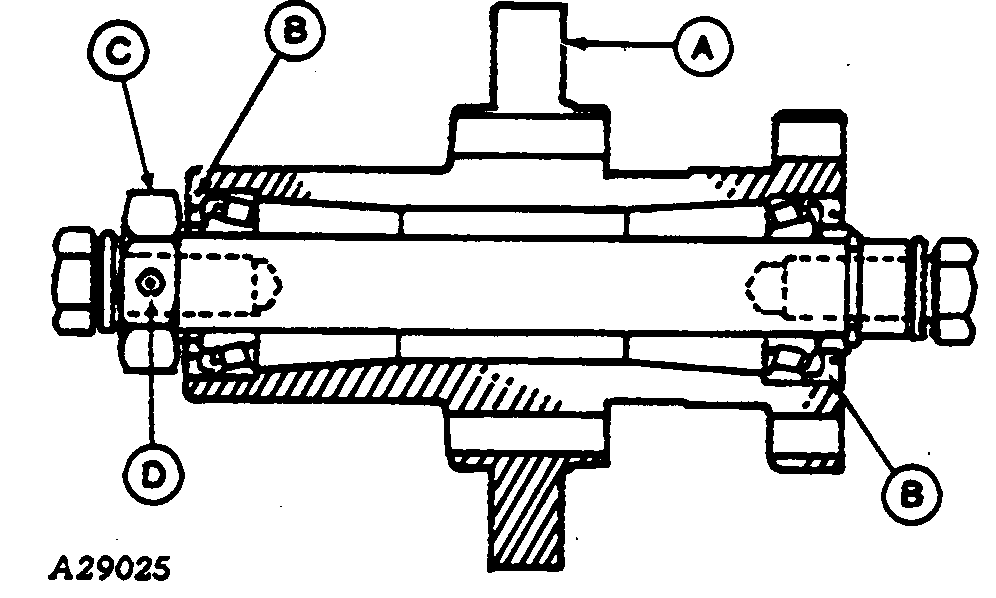

Should the wheel hub (A) be disassembled for any reason, clean and repack the bearing with wheel bearing grease and assemble on the axle. Be careful not to damage seals (B). Install the special jam nut (C) on the axle shaft. While turning the hub, adjust the jam nut until a slight drag is felt. Once this drag is established, tighten the set screw (D) on the jam nut.

7200OM,4,6WM,W2 -19-24APR97-1/1
