Link Lengths

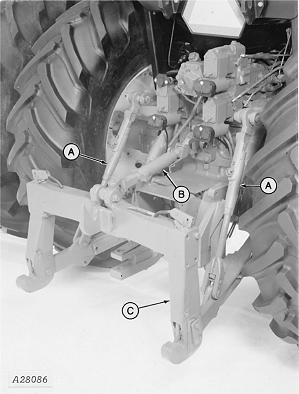

Set the lift links (A) short enough to provide adequate transport clearance.

Adjust the center link (B) until the quick-coupler (C) is vertical when in planting position.

IMPORTANT: For added safety, always use a quick-coupler to make attaching and detaching a one-person operation.

A54946,H -19-12MAY97-1/1
