Marker Length

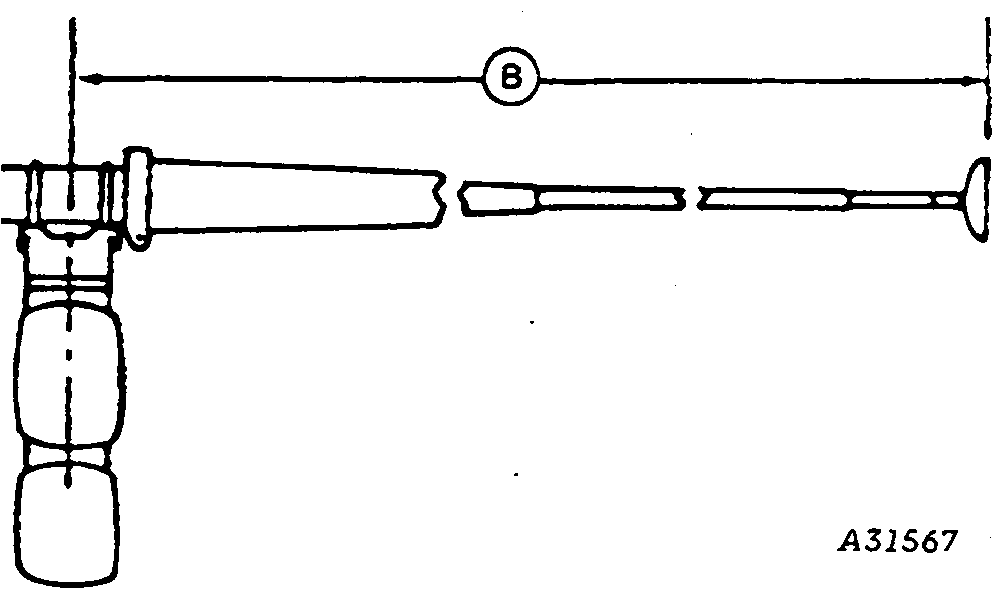

Loosen jam nuts and set screws (A) on marker arm and, with the arm in the down position, adjust to length shown below. Dimension (B) is measured from the center line of the planting unit to the marker disk. This is an approximate dimension and should be checked in the field.
| Planter |
Row Spacing |
Dimension "B" |
| 16-Row |
70 cm (27.5 in.) |
5937 mm (233.75 in.) |
| 16-Row |
76 cm (30 in.) |
6477 mm (255 in.) |
| 12-Row |
91 cm (36 in.) |
5944 mm (234 in.) |
| 12-Row |
97 cm (38 in.) |
6274 mm (247 in.) |
Tighten set screws and jam nuts.
|
