Liquid Fertilizer Rate Chart

1. Refer to rate chart and select desired rate of gallons per acre.

2. Select pump setting and adjust pump.

3. Select orifice number and install into special fitting.

4. Set high or low range as illustrated.

NOTE: The rate charts are effected by many factors such as wheel slippage and material used, therefore, this chart should be used only as a guide.

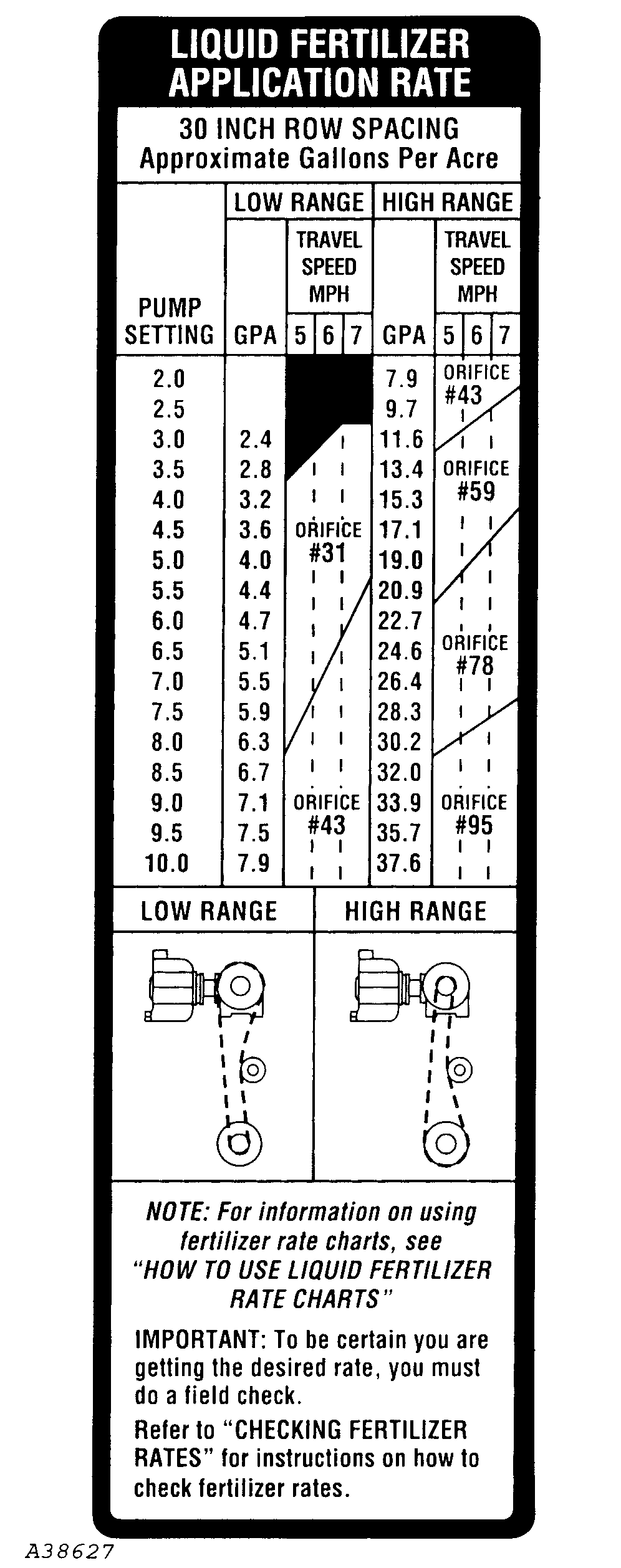

A38627

A56574,CG -19-25APR97-1/2

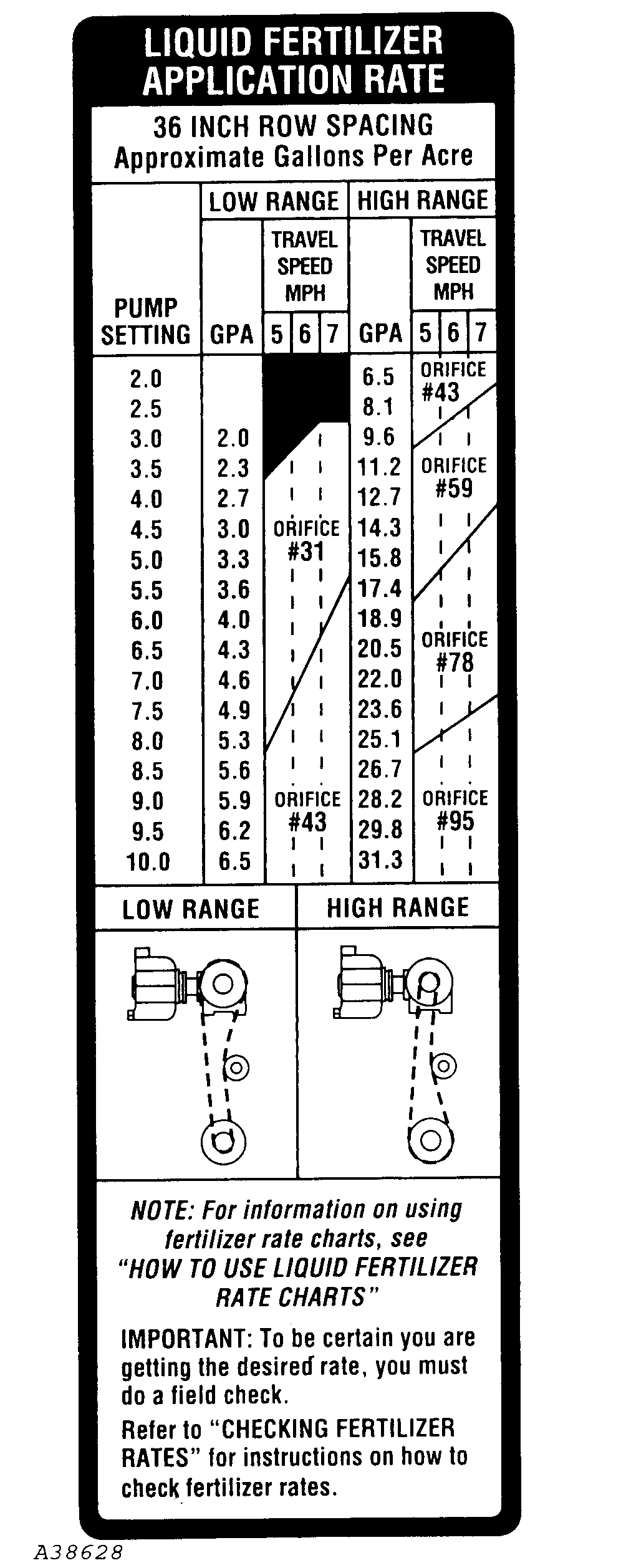

A38628

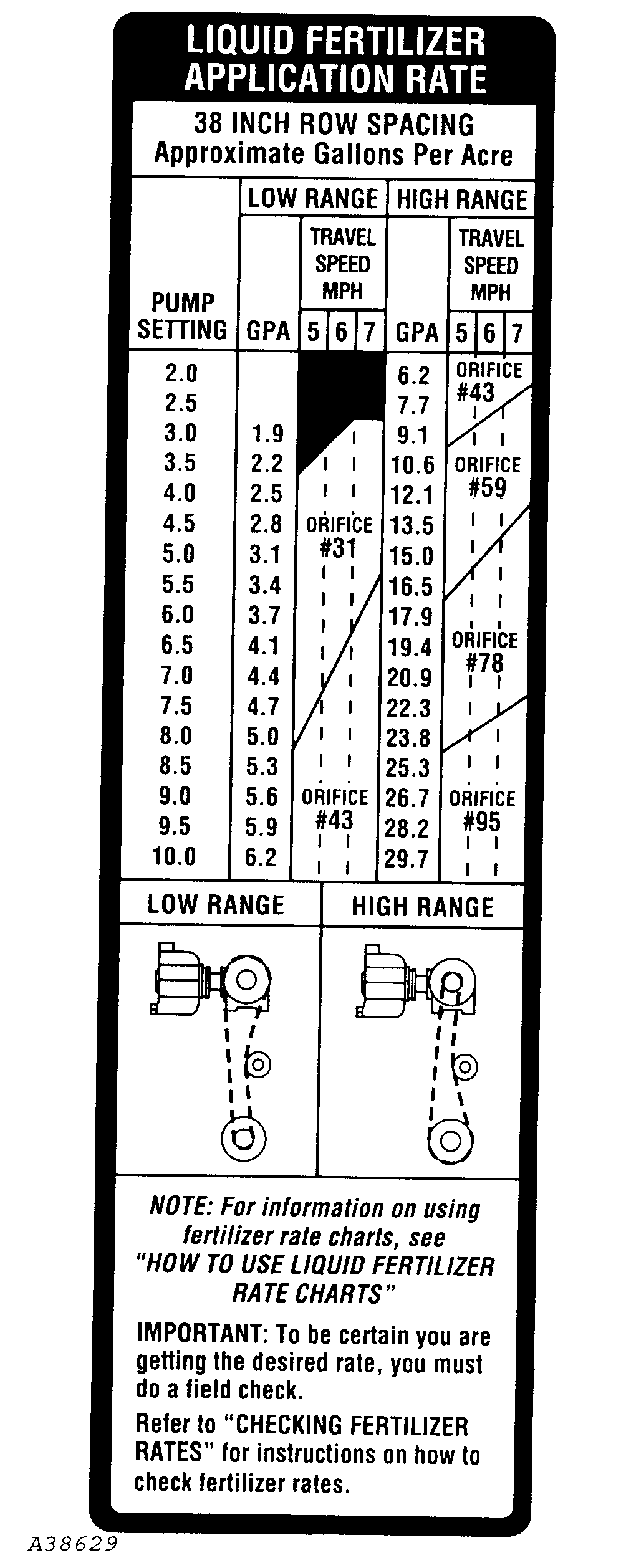

A38629

A56574,CG -19-25APR97-2/2
