(Radial Bean Meter Only)

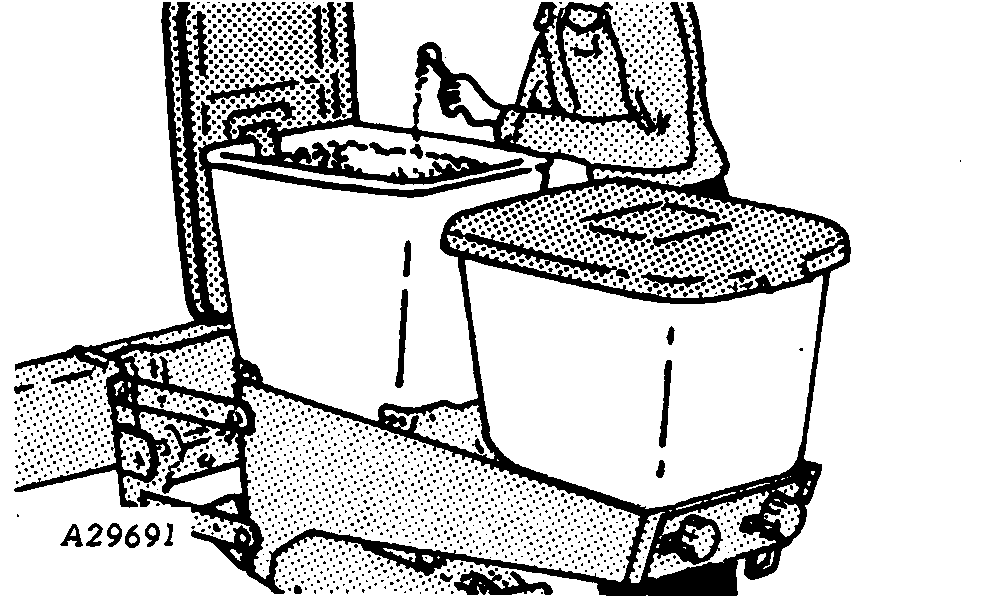

IMPORTANT: Add 3/8 tablespoon of powdered graphite (Part No. B33379) per bushel of soybeans to each hopper. The graphite will filter down into the radial bean meter and insure proper lubrication. John Deere Graphite provides a dry lubrication. Some types have an oil base and will form a gummy residue on parts. The graphite does not eliminate the need for proper and regular lubrication indicated in the lubrication charts.

NOTE: Any additives other than John Deere powdered graphite in radial bean meters may leave residue on parts that could affect planting rates.

Regular use of 3/8 tablespoon of powdered graphite (Part No. B33379), added into the hopper per each bushel of soybeans, reduces wear of the metering components and prolongs the life of the meter.

With rough-textured soybeans or treated soybeans, extra graphite added regularly with the seed will improve seed flow into the meter.

A58077OM,120A -19-24FEB97-1/1
