The granular fertilizer spout may require adjusting to ensure the fertilizer is delivered to the center of the soil furrow. To adjust proceed as follows:

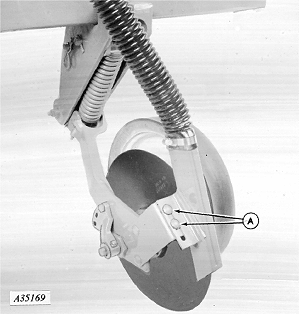

1. Loosen bolts (A).

2. Move lower end of spout inward or outward as required.

3. Position bottom portion of the spout vertically until it is approximately 15 mm (5/8 in.) above the soil surface. In wet conditions it may be necessary to raise the spout until it is approximately 25 mm (1 in.) above the soil surface to avoid plugging.

4. Tighten nuts after completing adjustment.
