Vacuum Meter Operating Characteristics

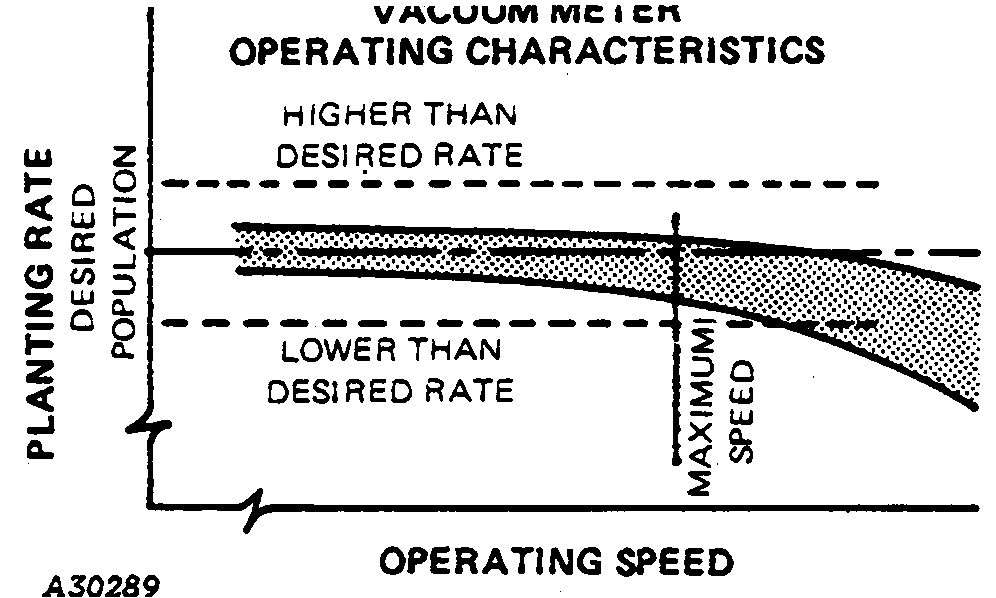

The operating band (gray area) illustrates how the vacuum meter performs in relation to the desired population (indicated by horizontal line).

The width of the band is due to:

Various sizes and shapes of seeds.

Planting rate variations.

In most cases, the planting accuracy of the vacuum meter does not decline unless you exceed maximum planting speed.

GENOM,OVM,A -19-24FEB97-1/1
