Low-Rate Sorghum1

Before assembling the low-rate metering unit, you must determine the size of the seed. You can accomplish this by using a seed sizing kit, available from your John Deere dealer.

NOTE: The three washer shims must be used with the low-rate feed cup. Do not operate without all three shims.

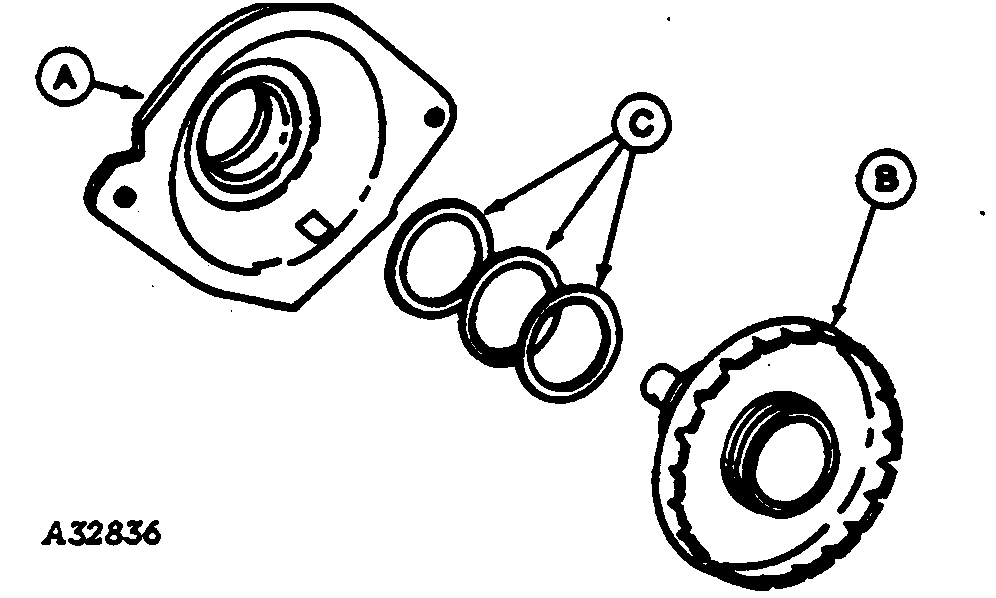

If the seed being planted will pass through the 3 mm (9/64 in.) screen by shaking vigorously, use three washer shims (C) between feed cup (B) and housing (A) only.

A32836

1Available through service parts only.

GENOM,PPU,F -19-29MAY92-1/6

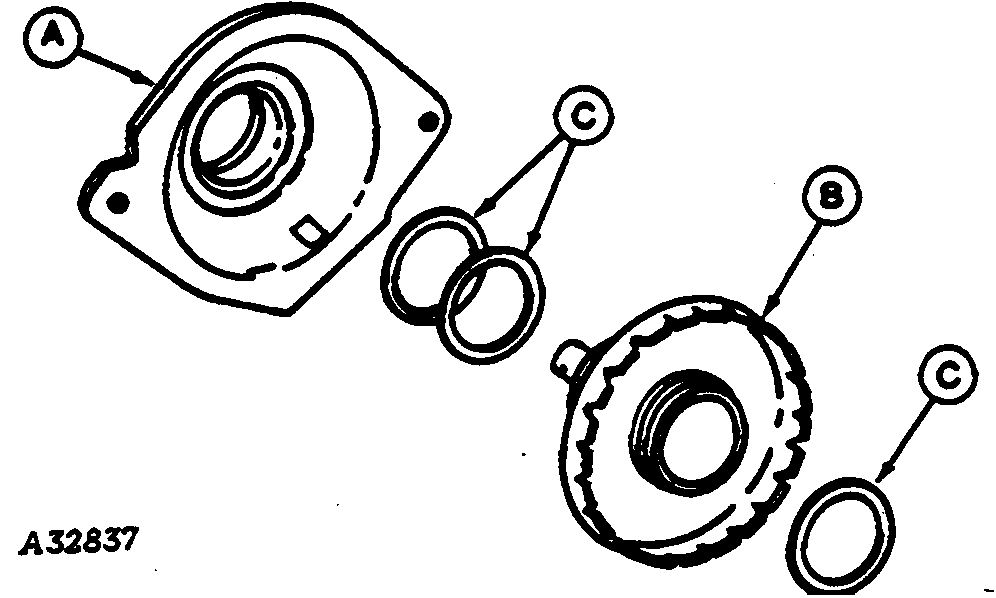

If the seed being planted will pass through the 4 mm (10/64 in.) screen and not the 3 mm (9/64 in.) screen, use two washer shims (C) between feed cup (B) and housing (A) and one washer shim (C) between feed cup and seed guide.

A32837

GENOM,PPU,F -19-29MAY92-2/6

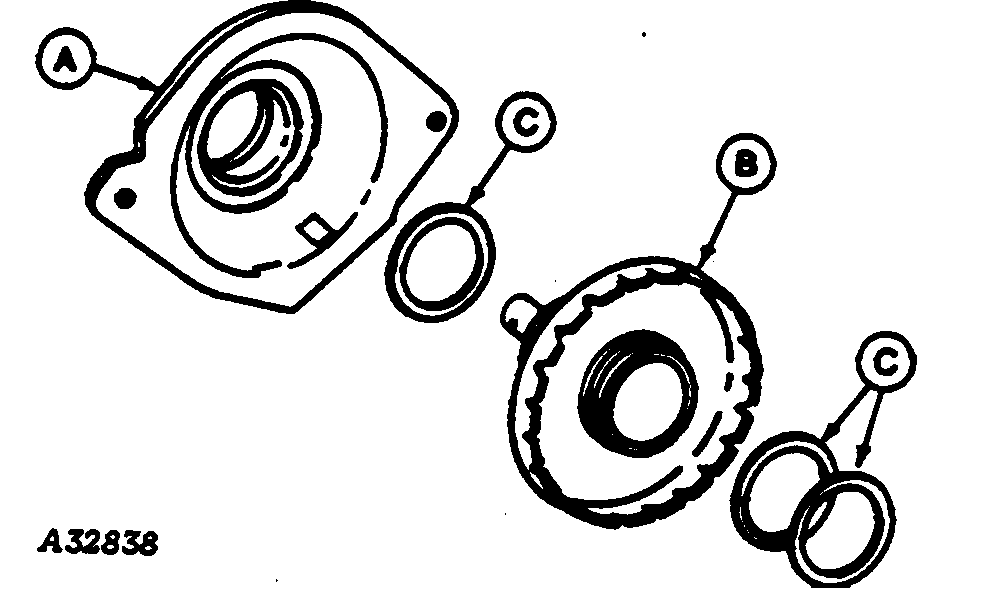

If the seed being planted will pass through the 5 mm (11/64 in.) screen and not the 4 mm (10/64 in.) screen, use one washer shim (C) between feed cup (B) and housing (A) and two washer shims (C) between feed cup and seed guide.

A32838

GENOM,PPU,F -19-29MAY92-3/6

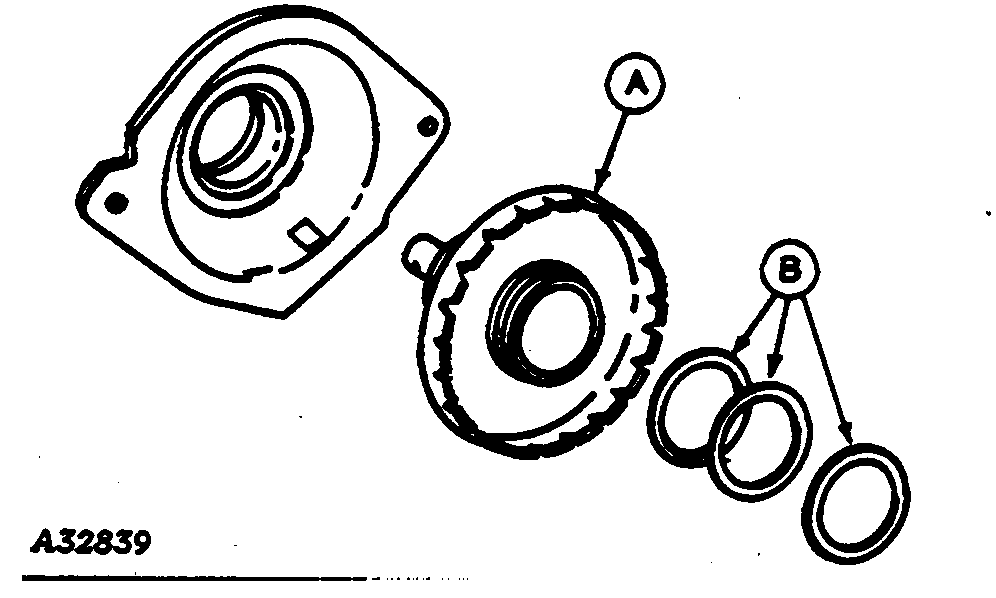

If the seed being planted will not pass through the 5 mm (11/64 in.) screen, use the three washer shims (B) between feed cup (A) and seed guide.

A32839

GENOM,PPU,F -19-29MAY92-4/6

Assemble the feed cup housing with the low-rate sorghum feed cup and correct number of washer shims. Install seed guide on feed cup adapter so it seats properly on the mounting studs (A). Align notch (B) in seed guide with projection on adapter.

H44521

GENOM,PPU,F -19-29MAY92-5/6

Attach feed cup and housing to adapter with wing nuts (A). Be certain aligning notch is located so feed cup housing seats properly.

Wipe off feed cup bushings periodically to help reduce wear.

IMPORTANT: Store the feed cup metering assemblies in a clean, dry place while they are not in use.
