Vacuum Level, Baffle Position and Vacuum Meter Brush for Sweet Corn Seed

For sweet corn supplier's information to calculate the seed size in seeds per pound.

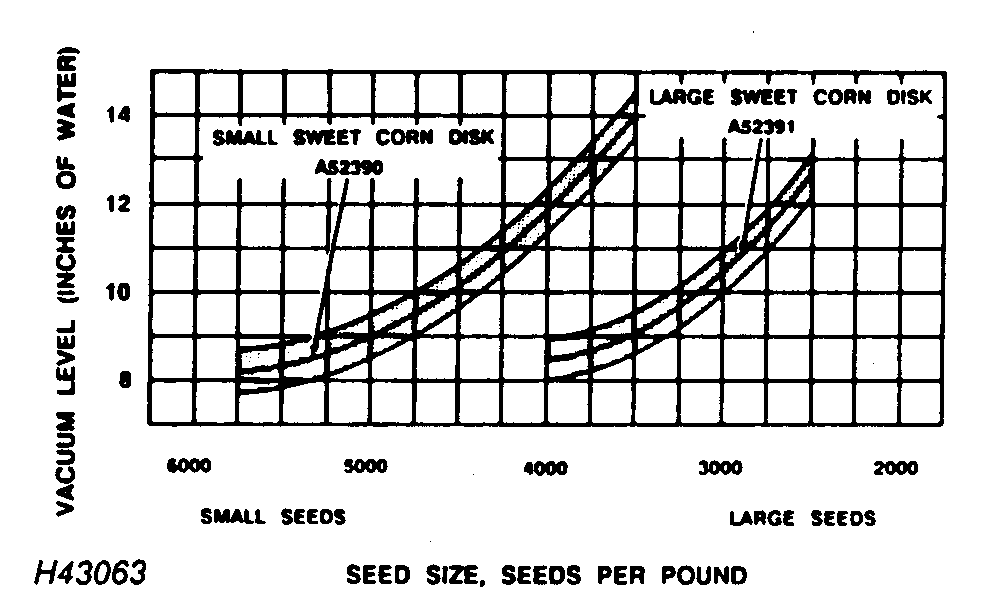

EXAMPLE: If seeds per pound is 4250. Referring to the chart, the vacuum level should be set at 11 in. when using the Small Sweet Corn Disk.

IMPORTANT: The 11 in. vacuum level above is an example on how to use the chart. Obtain size in seeds per pound. You must calculate the proper vacuum level for each seed variety.

VACUUM METER BAFFLE AND DOUBLE ELIMINATOR

Move tab (A).

Sweet corn, upper position (B).

Adjust double eliminator as follows:

Turn cam nut (C) to move top of double eliminator (D) toward the center of the housing as far as possible. Tighten screw (E).

VACUUM METER BRUSH

Use the regular (long) brush.

Talc Lubricant, 1/2 cup.

A-Tab
B-Position, Upper
C-Nut, Cam
D-Eliminator, Double
E-Screw

GENOM,VMSC,D -19-24FEB97-1/1
