Feed Cup Metering Unit

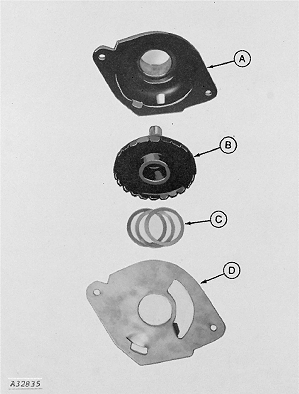

The feed cup metering unit consists of a feed cup housing (A), feed cup (B), washer shims (C) (used with low-rate sorghum metering units only) and corresponding seed guide (D).

Use feed cup metering units to plant the following types of seed:

Soybeans

  • Sorghum, Regular-Rate 1
  • Sorghum, Low-Rate 1
  • Edible Beans 1
  • Acid-Delinted Cotton 1


A-Housing, Cup
B-Cup, Feed
C-Shim, Washer
D-Guide, Seed

A32835

1 Available through service parts only.

OM54940,T -19-24FEB97-1/1
