Check Hydraulic Connections

IMPORTANT: Damage to the pump motor may occur if hydraulic hoses are assembled incorrectly. Check the following hydraulic connections before operating the vacuum motor.

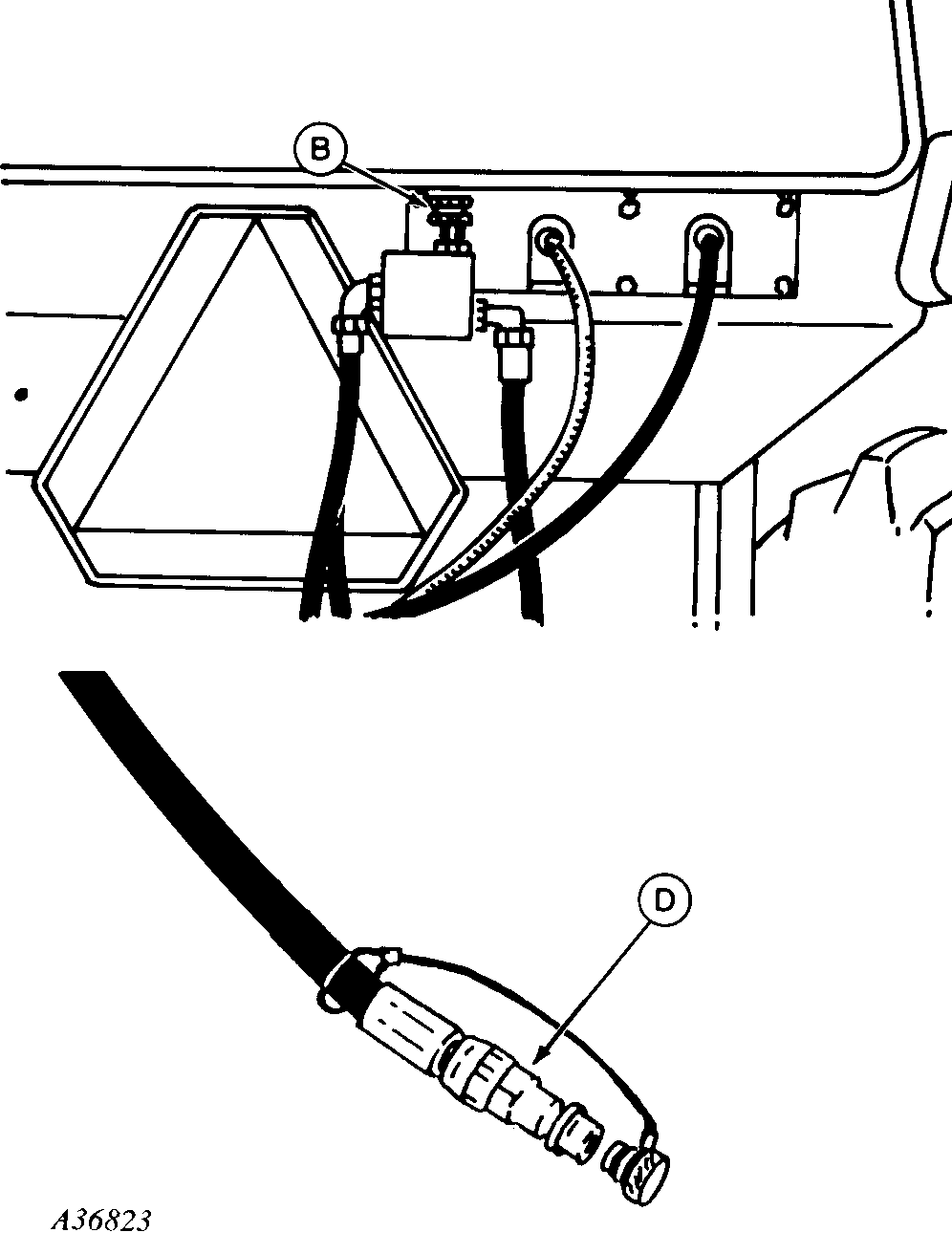

1. Be sure hose (A) connected to left-hand (inlet) side of motor is connected to elbow fitting in regulated port of control valve (B).

2. Be sure hose (C) connected to right-hand outlet side of motor is connected to motor return coupler (D).

A-Pressure Hose
B-Control Valve
C-Return Hose
D-Motor Return Coupler

OM56578A,55AA -19-20MAY96-1/1
