Rotary Scraper

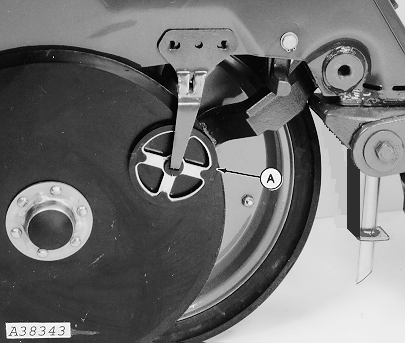

The spring-loaded rotary scraper (A) is recommended for moist, sticky soils to assist the depth gauging wheels in keeping the TRU-VEE opener blades clean.

NOTE: The scraper is not recommended in dry abrasive soil conditions.

At the start of the season and periodically during the season, inspect the scraper insert for wear.

See your John Deere dealer's Predelivery Instructions for assembly instructions.

OM56594,95C -19-24FEB97-1/1
