Vacuum Level, Baffle Position and Vacuum Meter Brush for Corn Seed Using Flat Medium Edible Bean Disk

For corn, use the seed corn supplier's information to calculate the seed size in seeds per pound.

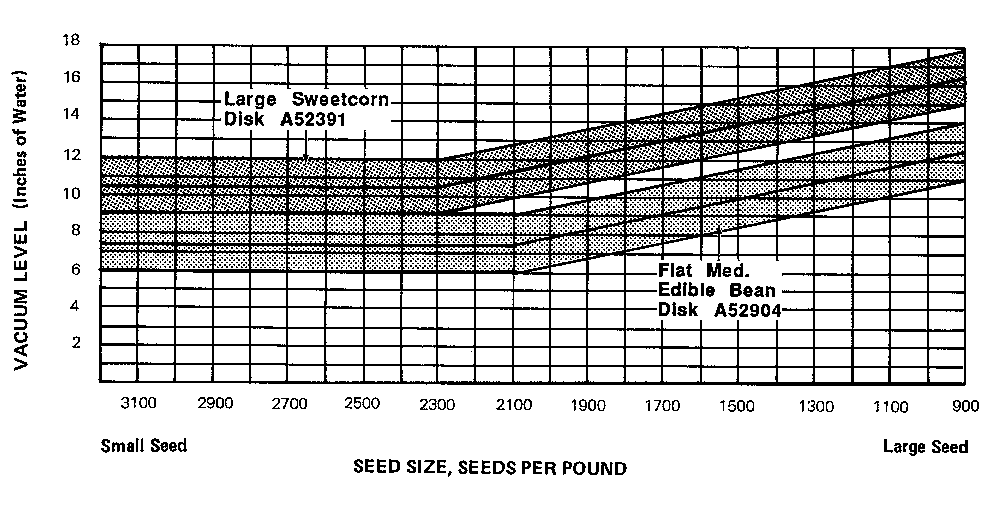

EXAMPLE: If the seed size is 2100 seeds per pound, referring to the chart, vacuum level should be set at 7 in. when using Flat Medium Edible Bean Disk.

IMPORTANT: The 7 in. vacuum level above is an example on how to use the chart. You must calculate proper vacuum level for each corn variety.

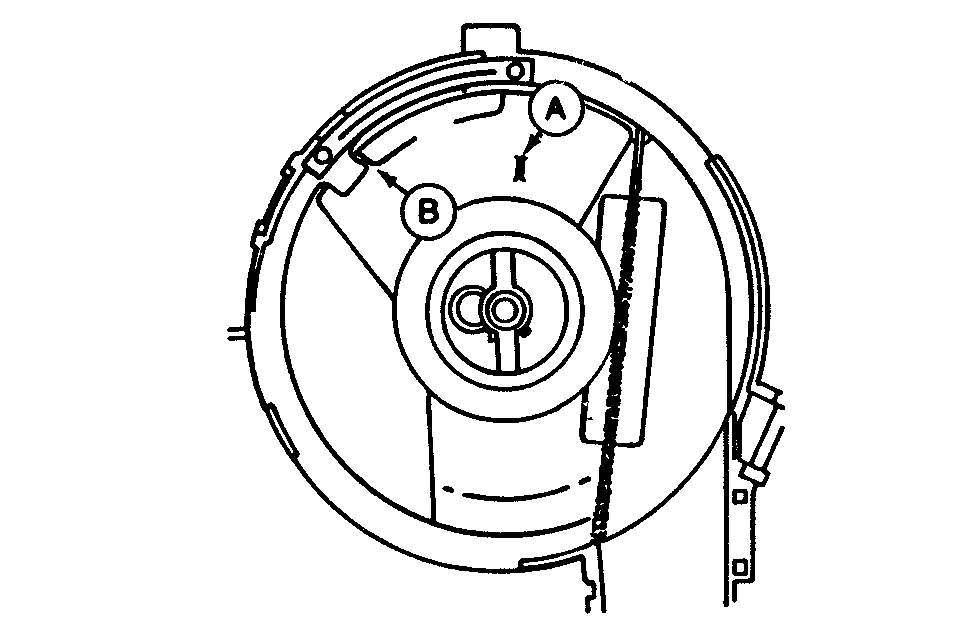

VACUUM METER BAFFLE

Move tab (A).

Corn, upper position (B).

Adjust double eliminator as follows:

The double eliminator should be positioned to cover from 1/4 to 1/2 of the vacuum hole. The tooth to the far right of the double eliminator (the one under the adjusting screw) is used. Set the double eliminator to the 1/4 position for seeds between 900 and 2000 seeds per pound. Set the double eliminator to the 1/2 position for seeds between 2000 and 3200 seeds per pound.

VACUUM METER BRUSH

Use the regular (long) brush.

Talc Lubricant, 1/2 cup.

OM60113,80B -19-25APR97-1/1
