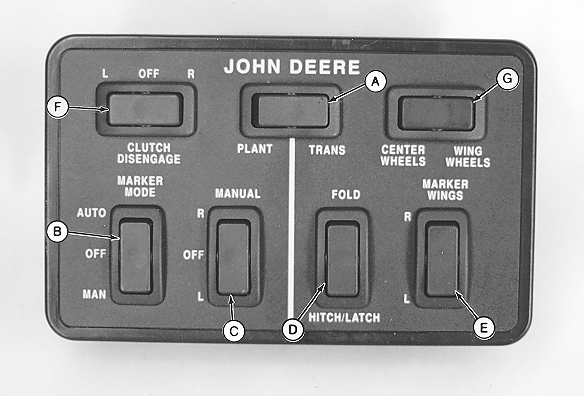

A-PLANT-TRANS Switch-When in PLANT position, it allows the planter to be raised or lowered without operating any switches. When in TRANS position, it allows the planter to fold and unfold, raise and lower wing wheels and center wheels, raise and lower hitch and operate marker wings.

B-MARKER MODE Switch-Manual or automatic alternation of markers.

C-MANUAL Switch-When MARKER MODE switch is in MANUAL, switch controls individual marker use.

D-FOLD-HITCH/LATCH Switch-Used to fold and unfold or latch planter for transport.

E-MARKER WINGS Switch-Used to raise or lower marker wings.

F-CLUTCH DISENGAGE Switch-Allows you to disengage the drive on either half of the planter for planting point rows.

G-CENTER WHEELS-WING WHEELS Switch-Used to operate wing wheels or center wheels independently.

OM60117,45A -19-13AUG97-1/1
