175 mm (7 in.) Insecticide Band Spreader (Front Mounted)

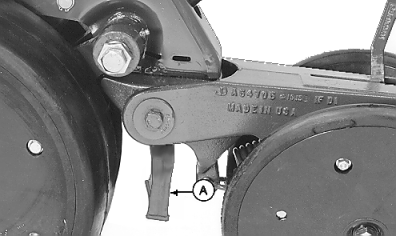

The 175 mm (7 in.) insecticide band spreader (A) is designed to apply a band of granular insecticide approximately 175 mm (7 in.) wide on top of the ground when planting.

See Predelivery Instructions for assembly instructions.

IMPORTANT: Some insecticides are toxic if it comes into direct contact with the seed. Consult your chemical supplier for the proper location to apply your chemical.

OM62304,105A -19-01MAY98-1/1
