Service at the End of the Season

When planting is completed for one season, store the planter under cover with all parts in operating condition.

Paint all parts which are chipped or worn and require repainting.

Clean the planter thoroughly to remove dirt and trash which would hold moisture and cause rusting.

Lubricate the planter as outlined in the Lubrication section, and grease exposed cylinder rods.

Thoroughly lubricate chains with John Deere Multipurpose Spray Lube, TY6350, at the beginning of the idle period.

Empty and clean seed hoppers.

Clean insecticide and/or herbicide hopper thoroughly as various chemicals may deteriorate the system components.

Inspect the planter for worn or broken parts. See your John Deere dealer during the off season so that parts or service can be acquired when the planter is not needed in the field.

Store the planter in a clean, dry place with the planting unit gauge wheels and firming wheels out of the sun.

Place handle for closing wheel down force in long slot to relieve tension on closing wheels.

Thoroughly flush liquid herbicide system with clean water. Disconnect from tractor and completely drain all lines and components to prevent damage from freezing.

OM62304,160B -19-01MAY98-1/2

Remove seed disks from meter. (See VACUUM METER INSPECTION AND SERVICE in Service section.)

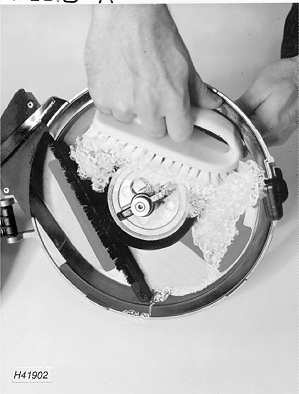

Clean meter housing, meter chamber and seed disk with mild detergent and soft brush.

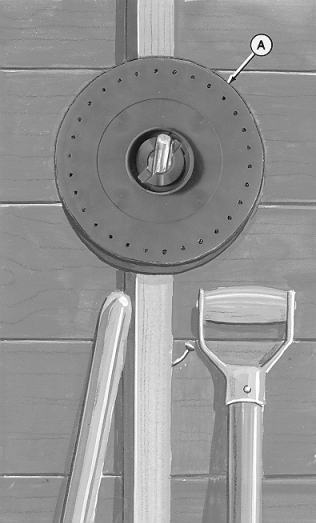

Store disks in shipping box or hang on wall (A).

IMPORTANT: Be sure to store seed disks away from extreme heat or direct sunlight. Do not leave disks in the meters during the off season. Do not store under heavy parts.

Clean air manifold system. ( See CLEAN AIR MANIFOLD SYSTEM in Service section.)

Check for hydraulic leaks.

Check and clean out manifolds.

Check and clean vacuum meters.

Check and replace necessary vacuum meter seals.

OM62304,160B -19-01MAY98-2/2
