Specifications

PLANTING UNIT TYPES ... ... Plateless, Finger Pickup, Radial Bean Meter or Vacuum Meter
SEED OPENERS ... ... Tru-Vee double disk
ROW SPACING ... ... 16-Row Narrow-70 cm (27.5 in.) row width
16-Row Narrow-76 cm (30 in.) row width
12-Row Wide-91 cm (36 in.) row width
12-Row Wide-97 cm (38 in.) row width
TYPE OF LIFT ... ... Wheel modules with hydraulic cylinders
TYPE OF DRIVE ... ... Sprocket and chain from drive wheels or hydraulic variable rate drive
TIRES ... ... 7.50-20 6PR rib implement tire
SEED HOPPERS ... ... 1.6 bu. or 3 bu. capacity
MARKERS ... ... Automatic alternating or independent controlled
MINIMUM TRACTOR SIZE REQUIRED ... ... 155 hp
HYDRAULIC OIL REQUIRED TO OPERATE PLANTER ... ... 2 U.S. gal.
TRACTOR STANDBY PRESSURE ... ... 2250 psi.
SEED MONITOR ... ... Computer Trak 250 with Radar Distance Input
SEEDSTAR with Radar Distance Input



OM62304,170A -19-01MAY98-1/4

A38433
A38434

Model Dimension "A" Dimension "B"

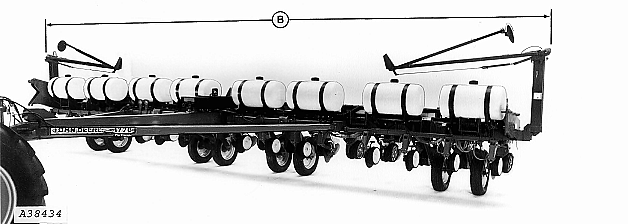

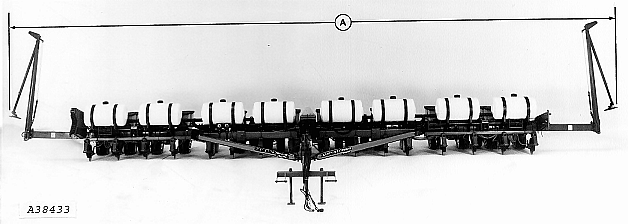

16-Row Narrow 16.7 m (55 ft.) 13.2 m (43 ft. 4 in.)
12-Row Wide 16.7 m (55 ft.) 13.2 m (43 ft. 4 in.)



OM62304,170A -19-01MAY98-2/4

A44877

causym CAUTION: Serious injury or death can result from contact with electric lines. Use care

when moving or operating this machine near electric lines to avoid contact.

Model Dimension "C" Dimension "D"

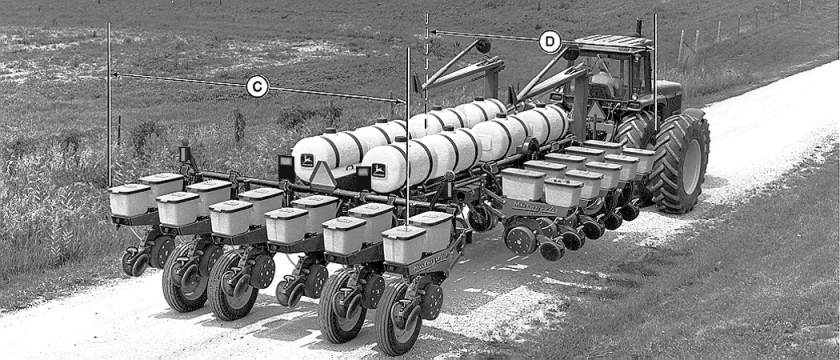

16-Row, 70 cm (27.5 in.) 3.8 m (12 ft. 10 in.) 4.6 m (15 ft.)
16-Row, 76 cm (30 in.) 4.2 m (13 ft. 10 in.) 4.6 m (15 ft.)
12-Row, 91 cm (36 in.) 2.74 m (9 ft.) 4.6 m (15 ft.)
12-Row, 97 cm (38 in.) 3.75 m (12 ft. 4 in.) 4.6 m (15 ft.)



OM62304,170A -19-01MAY98-3/4

A44878

Model Dimension "A" Dimension "B"

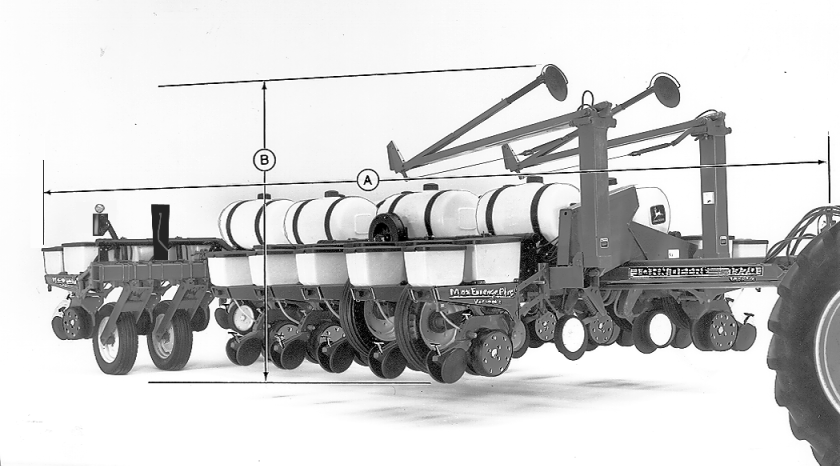

16-Row Narrow 10.3 m (34 ft.) 3.5 m (11 ft. 4 in.)
12-Row Wide 10.3 m (34 ft.) 3.5 m (11 ft. 4 in.)
