Set Valve Controls

SCV I: Press touch control switch I to adjust raise/lower planter. Adjust flow control knob (B) for flow. Adjust time detent knob (C) to 10 seconds, and readjust in field as required.

SCV II: If equipped with Variable Rate Drive, press touch switch II to set flow to variable drive motors. Adjust flow control knob (B) to 9.9. Adjust time detent knob (C) to constant.

SCV III: Press touch control switch II to set flow to hydraulic vacuum motor. Adjust flow control knob (B) to desired vacuum. Start with low flow setting at 2.0 on display and adjust for correct vacuum level after seeds are on the disk. Set time DETENT knob (C) to CONSTANT. Push tractor control lever to detent and release to operate motor. To turn off hydraulic vacuum motor place control in FLOAT.

SCV IV: Press touch control switch III (D) to set flow to hydraulic vacuum motor. Adjust flow control knob (B) to desired vacuum. Start with low flow setting at 2.0 on display and adjust for correct vacuum level after seeds are on the disk. Set time DETENT knob (C) to CONSTANT. Push tractor control lever (A) to detent and release to operate motor. To turn off hydraulic vacuum motor place control in FLOAT.

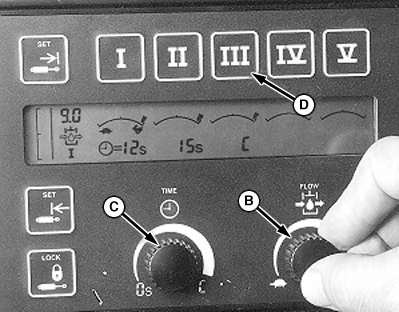

N48137

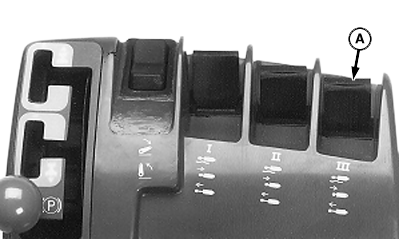

N48109

SCV III is Illustrated


A-Lever, Control
B-Knob, Control
C-Knob, Detent
D-Switch, Control III

SCV # FUNCTION FLOW DETENT (TIME)
1 Planter Raise/Lower/Wing Fold/Marker Start at 9.9. 15 seconds or as required for full extend/retract
2 Variable Rate Drive (If equipped) 9.9 Constant (C)
3 Vacuum Motor Start at 2.0 and adjust as required to obtain desired vacuum pressure Constant (C)
4 Vacuum Motor Start at 2.0 and adjust as required to obtain desired vacuum pressure Constant (C)



OM62304,35B -19-01MAY98-1/1
