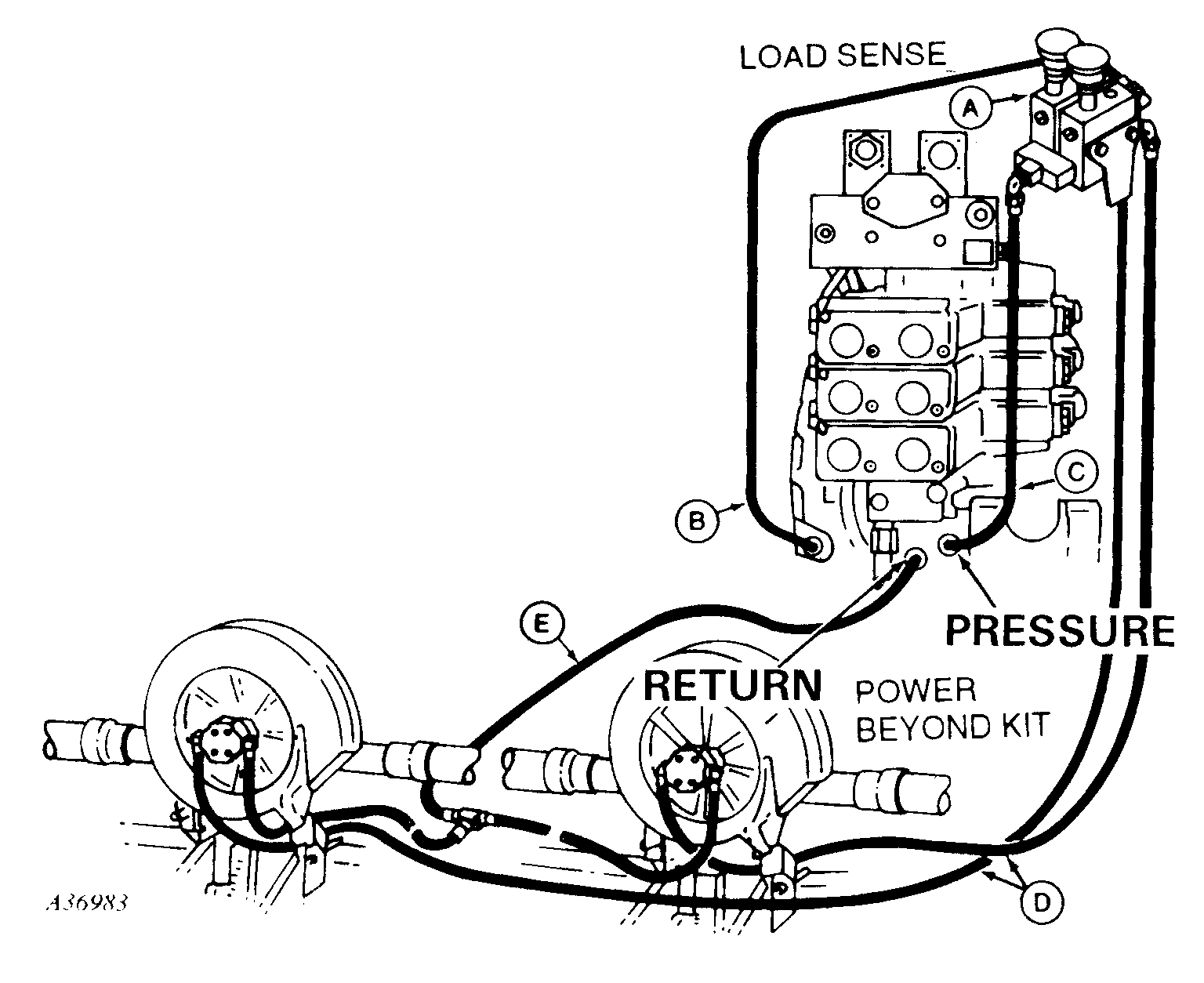

A-Control Valve
B-Load Sensing Hose

C-Pressure Hose

D-Controlled Flow Hoses

E-Return Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

1. Connect pressure hose (C) from control valves (A) to right-hand side of power beyond coupler.

2. Connect return hose (E) to motor return coupler.

3. Connect load sensing hose (B) to small coupler on power beyond coupler.

4. Flow control valves (A) will be used to control vacuum level.
