Priming and Initial Start Up of Pump

1. Close shutoff valves at filler.

2. Fill tanks half full of water and check system for leaks.

3. Open shutoff valve to pump.

NOTE: Plug, stored in plastic bag, can replace vented plug if pump is removed from planter. This will prevent oil from leaking out vented plug.

4. Lower planter to planting position and move 100 to 200 yards. Close shutoff valves to pumps.

54944OM,AR -19-24FEB97-1/2

5.

NOTE: To facilitate priming of the pump start at the maximum rate, and/or open one of the special fitting at the check valve (A). BE SURE not to lose the diaphragm in the check valve. If reassembly is required the NIB on the diaphragm fits into hole in the end cap assembly.

Remove strainer screen and check for foreign material. Check if necessary.

6. Select rate of fertilizer using rate charts.

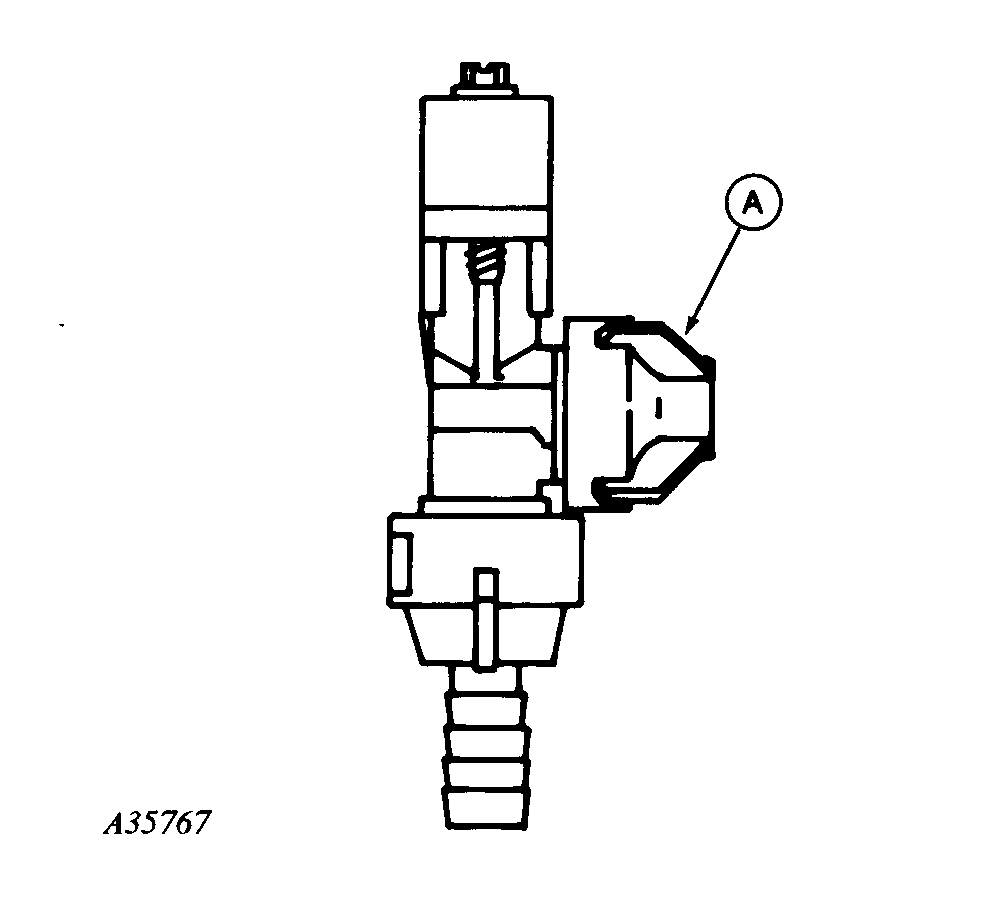

A-Check Valve

A35767

54944OM,AR -19-24FEB97-2/2
