OMA65059: 1710 Vertical-Fold and 1720 Stack-Fold MaxEmerge® Plus Integral Planters, Block File: 56594OMA_75DA_19

Vacuum Level, Baffle Position and Vacuum Meter Brush for Soybeans

Vacuum level for soybeans is set at 8 in.

56594OMA,75DA -19-24FEB97-1/3

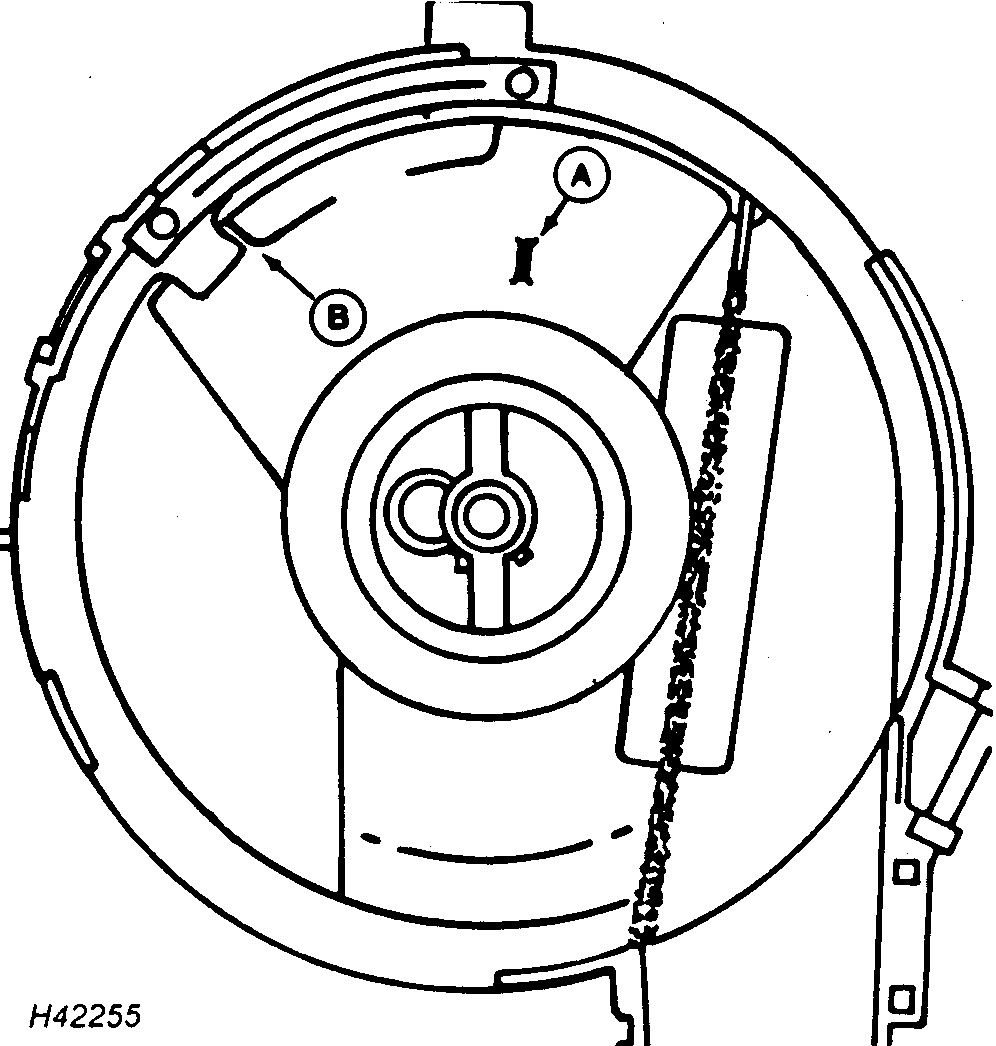

VACUUM METER BAFFLE: Move tab (A).

Soybeans, upper position (B).

A-Tab
B-Upper Position

Upper Baffle Position

56594OMA,75DA -19-24FEB97-2/3

VACUUM METER BRUSH: Use the (regular) long brush.

Talc lubricant, 1/2 cup, if treated.

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

Regular (Long) Brush

56594OMA,75DA -19-24FEB97-3/3
