Setting Pump Drive

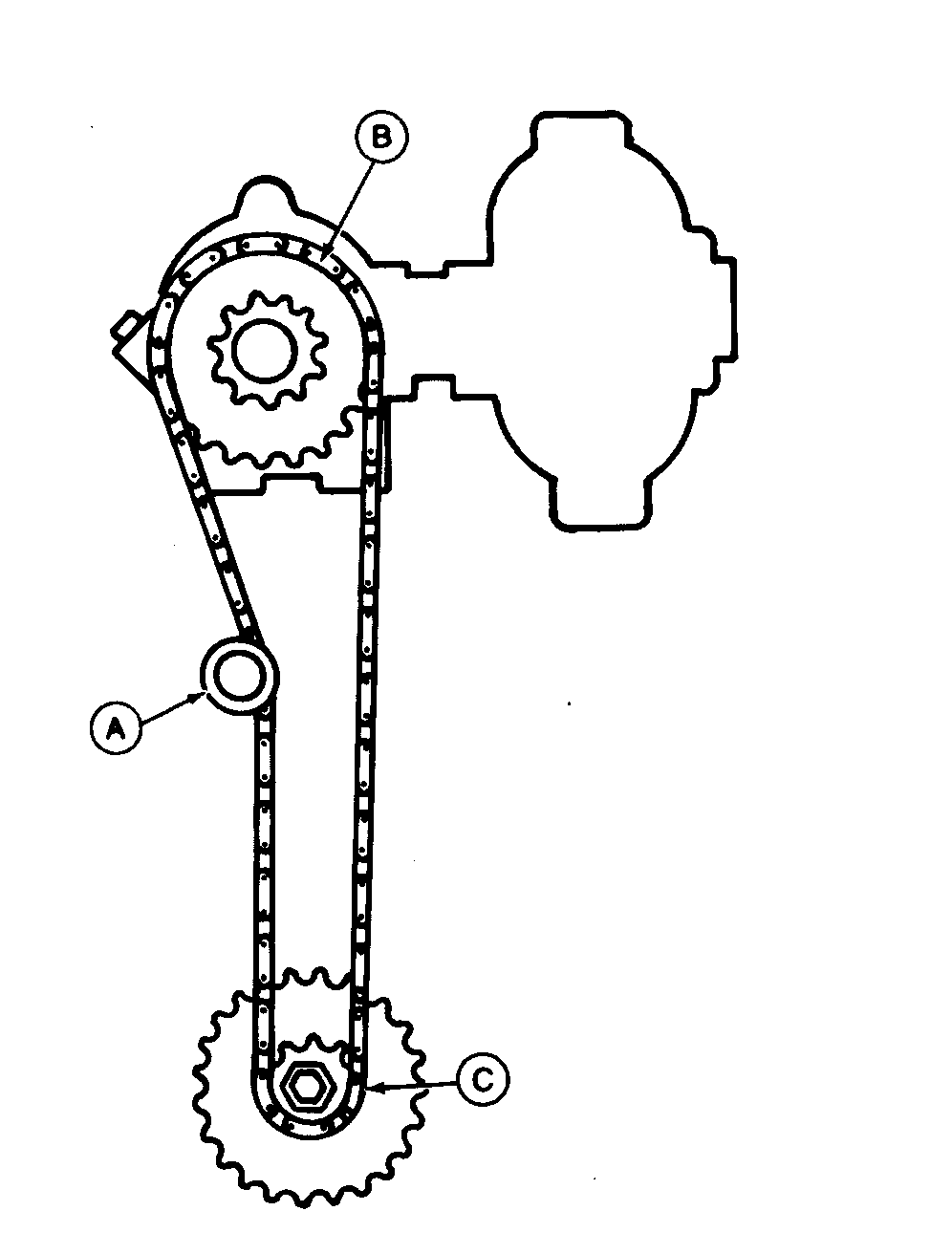

1. For HIGH DRIVE range, loosen roller idler (A). Move chain to driven 16-tooth sprocket (B) on pump and to drive 35-tooth sprocket (C).

A-Roller Idler
B-16-Tooth Sprocket
C-35-Tooth Sprocket

720016ROM,AT,I4 -19-20MAY93-1/2

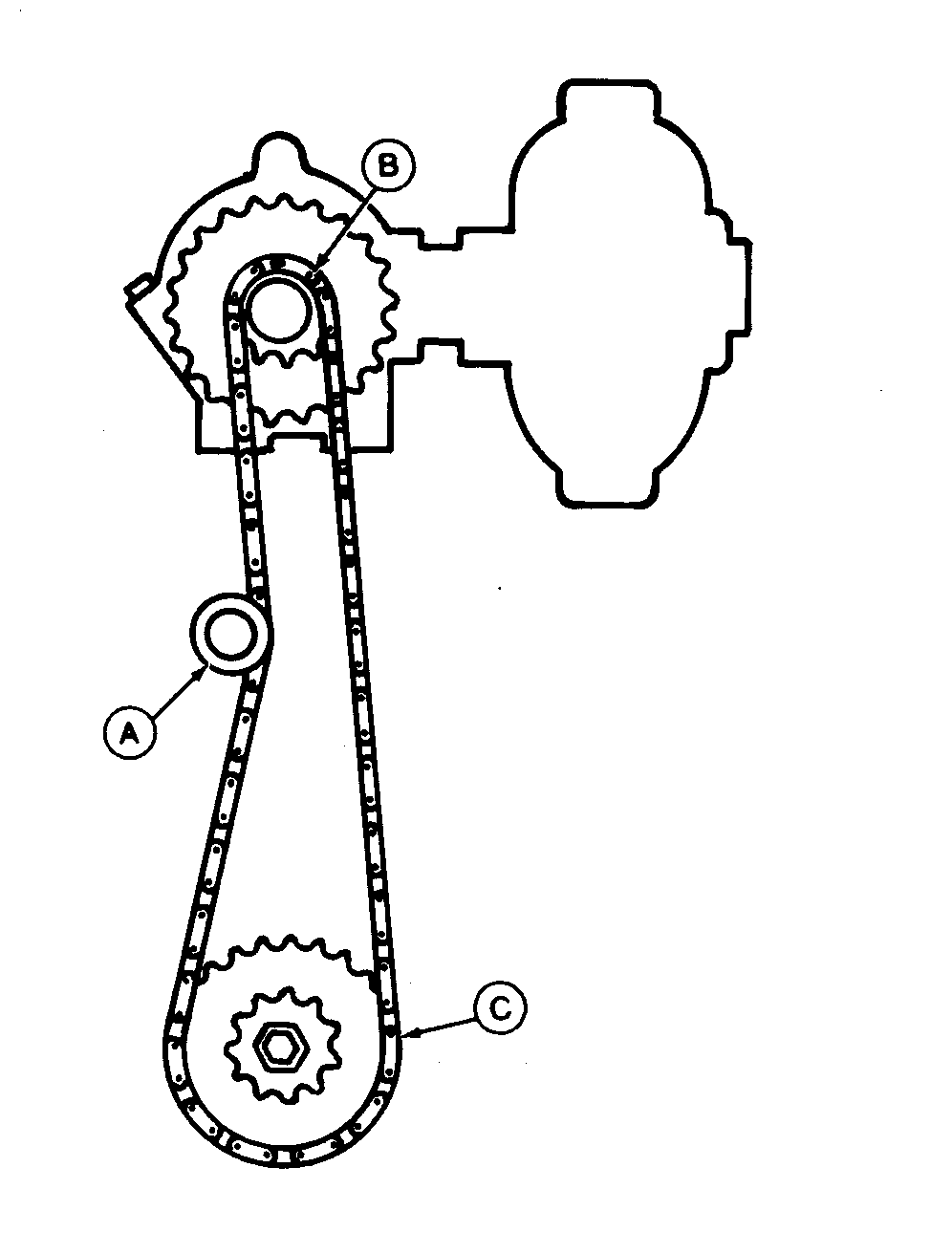

2. For LOW DRIVE range, loosen roller idler (A). Move chain to driven 35-tooth sprocket (B) on pump and to drive 16-tooth sprocket (C).

A-Roller Idler
B-35-Tooth Sprocket
C-16-Tooth Sprocket

720016ROM,AT,I4 -19-20MAY93-2/2
