Location of Hitch Pins on All Tractors Except Tractors With Category 3N/2 Hitch Without Quick-Coupler

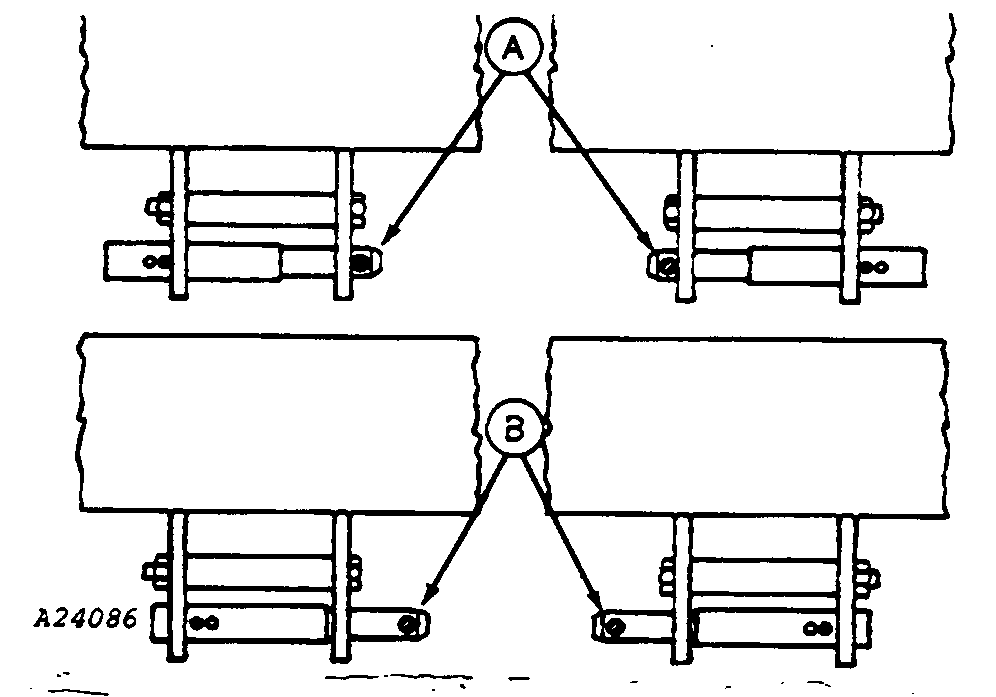

Position hitch pins and spacers as shown for your type tractor hitch.
A-Lower pins positioned for Category 2 without Quick-Coupler or Category 3 with Quick-Coupler
B-Lower Pins positioned for Category 2 or 3N with Quick-Coupler
