Link Lengths

Set the lift links (A) as required to provide adequate transport clearance.

Adjust the center link (B) until the quick-coupler (C) is vertical when in planting position.

IMPORTANT: For added safety, always use a quick-coupler to make attaching and detaching a one-person operation. Set draft/position control to POSITION.

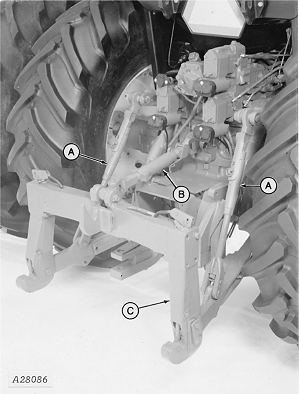

A-Lift Links
B-Center Link
C-Quick-Coupler

A54958,20,D -19-16MAY95-1/1
