Using Hitch Control Lever and Raise/Lower Switch

CAUTION: To prevent possible injury, use ONLY the hitch control lever (A) when attaching or detaching implements. DO NOT use raise/lower switch (E).

Hitch control lever (A) is used to raise and lower hitch. Pull lever rearward to raise; push lever full forward to lower.

Set full down position against lever by turning stop wheel (B).

Raise/lower switch (E) allows raising and lowering during turns, without having to move the hitch control lever.

CAUTION: To prevent possible injury and equipment damage while transporting, set the hitch control lever in the transport lock position (D). This will prevent lowering the hitch.

Raise/lower switches are disabled when the control lever is in the transport lock position (D). Hitch may raise when starting tractor with the hitch control lever in the transport lock position.

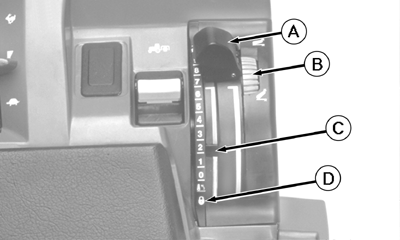

A-Hitch Control Lever
B-Depth Stop Wheel
C-Depth Stop
D-Transport Lock Position

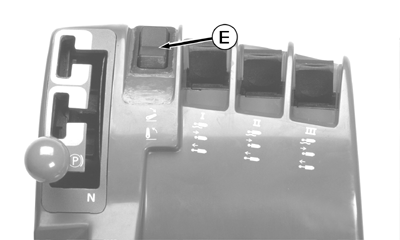

E-Raise/Lower Switch

A54958,20,H -19-08MAY98-1/1
