1720-Hitch Raised
|

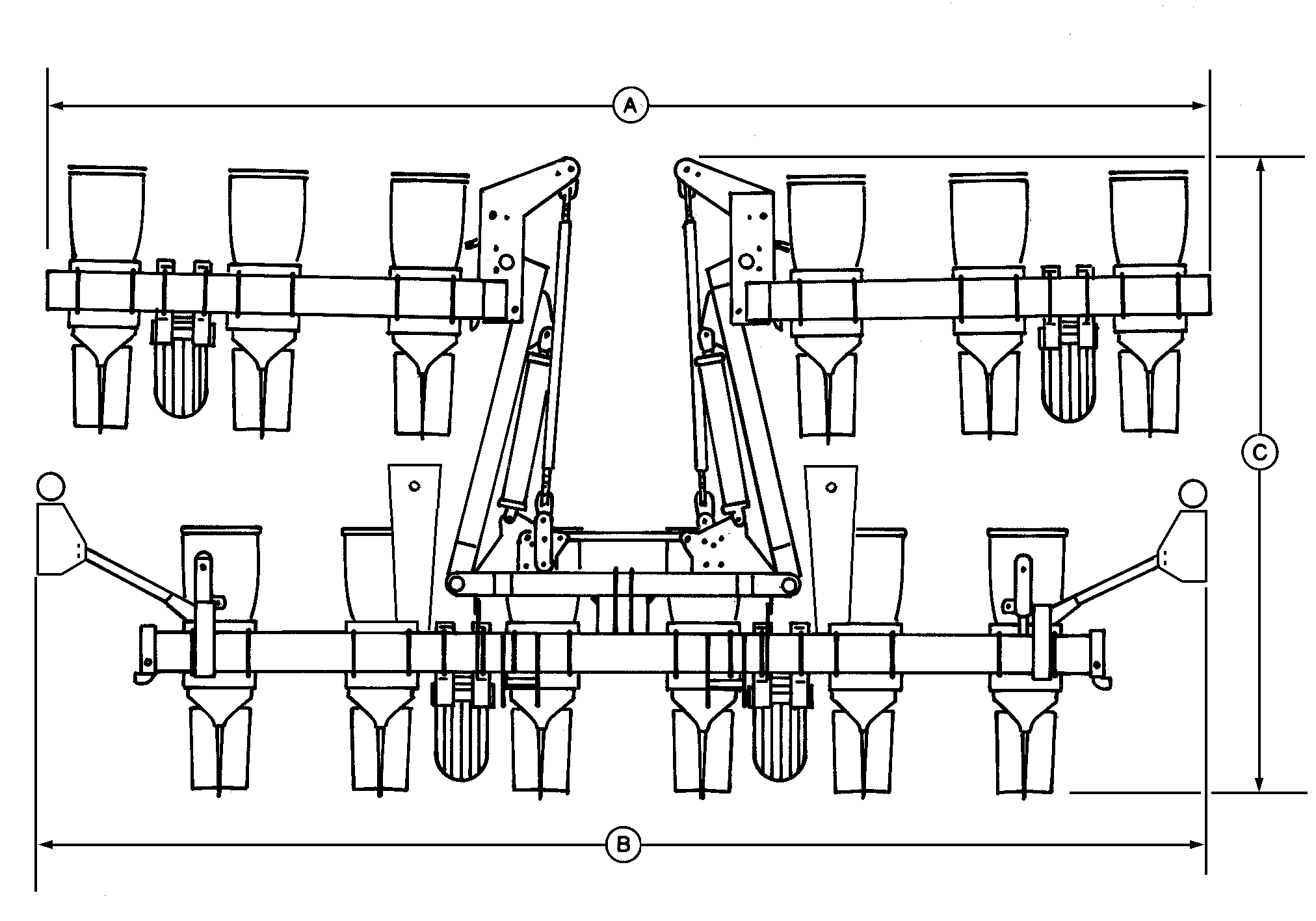

| LEGEND: | Dimension "A" W/O Markers | Dimension "B" | Dimension "C"* |
|---|---|---|---|
| 12-Row, 762 mm | 551 cm (217 in.) | 551 cm (217 in.) | 260 cm (142 in.) |
| (30 in.) | 5.5 m (18 ft. 1 in.) | 5.5 m (18 ft. 1 in.) | 3.6 m (11 ft. 10 in.) |
| 16-Row, 762 mm | 721 cm (284 in.) | 706 cm (278 in.) | 401 cm (158 in.) |
| (30 in.) | 7.3 m (23 ft. 8 in.) | 7 m (23 ft. 2 in.) | 4 m (13 ft. 2 in.)` |
|
|
* On 4960 Tractors with 18.4R-46 rear tires with hitch pin 42 In. off ground. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care when moving or operating this machine near electric lines to avoid contact.
A54958,20,Z -19-08MAY98-1/1 |
