Frame Flexibility (10- and 12-Row Wide)-1720

A36811

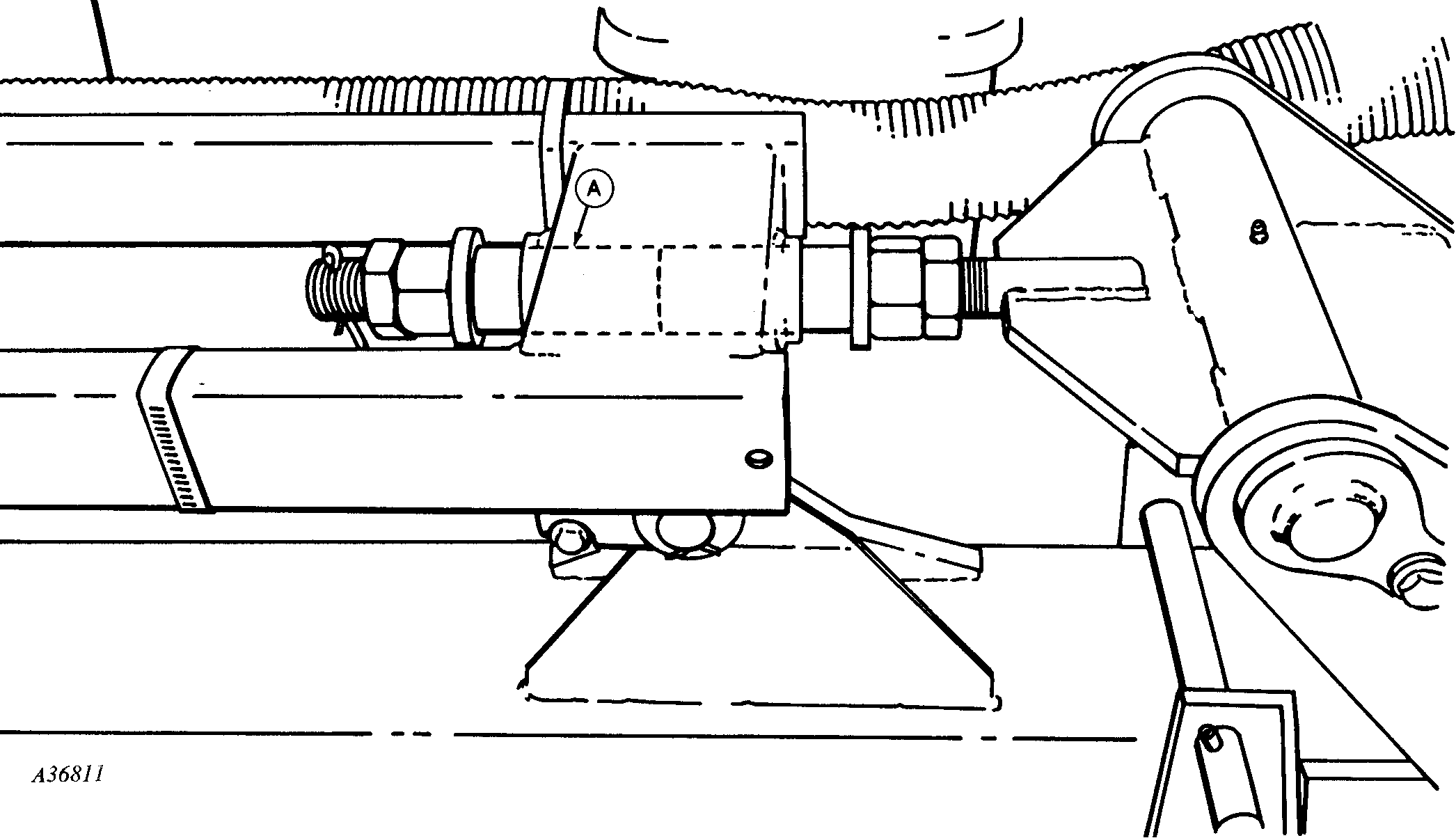

A-Spacer Location



1. Position planter frame on a smooth, level surface in an unfold (planting) position; then cut a 116 mm (4-9/16 in.) long plastic spacer from SHC40 PVC and install next to existing spacer on trunnion at

(A). Adjust nuts so an equal amount of spacer is exposed at each end of link sleeve. This allows the wing frame to flex five degrees up and down.

A54960,Z -19-16MAY95-1/5

A36812

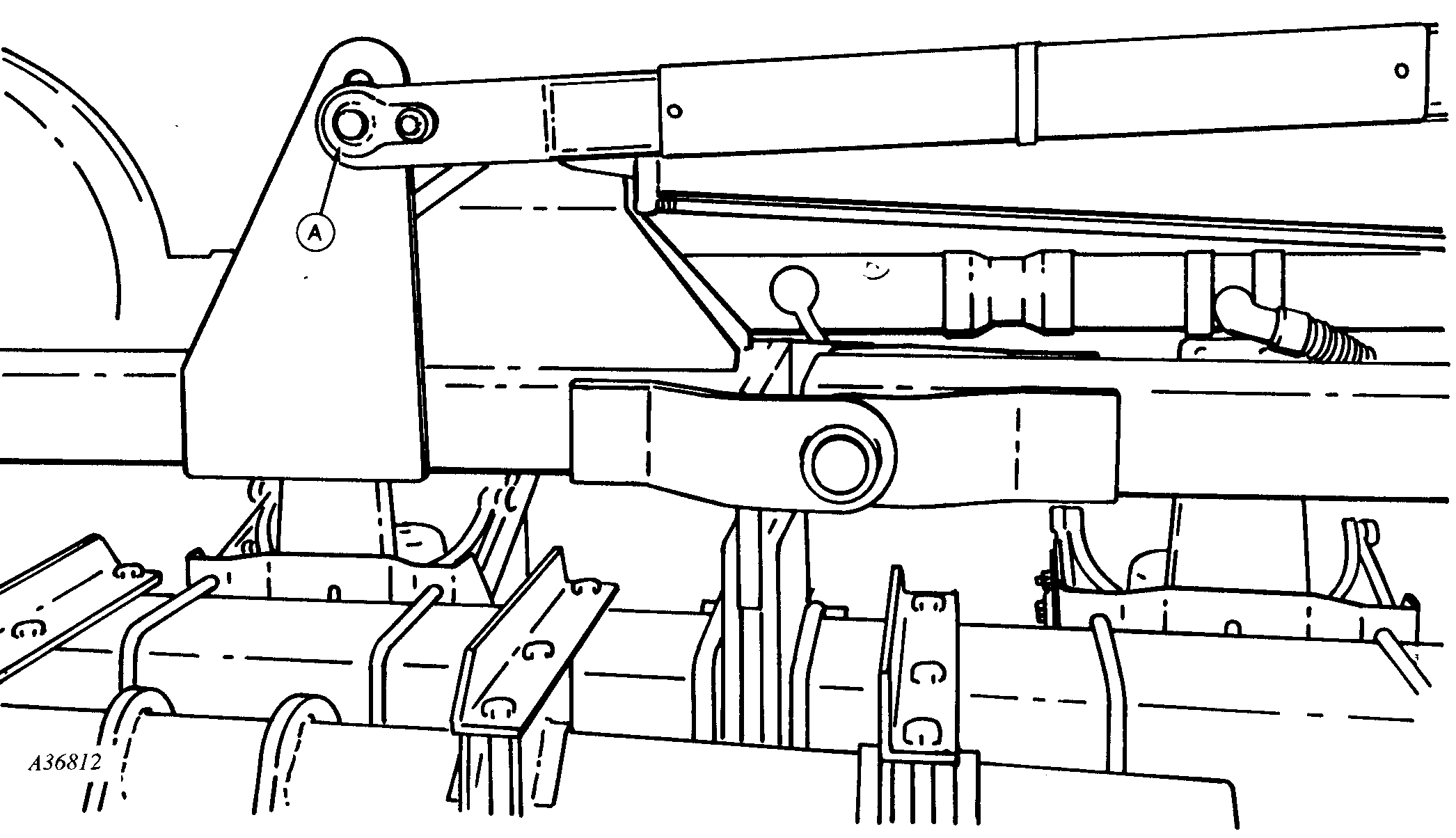

A-Link Pin



2. Remove link pin (A), reposition link and install pin in lower hole.

A54960,Z -19-16MAY95-2/5

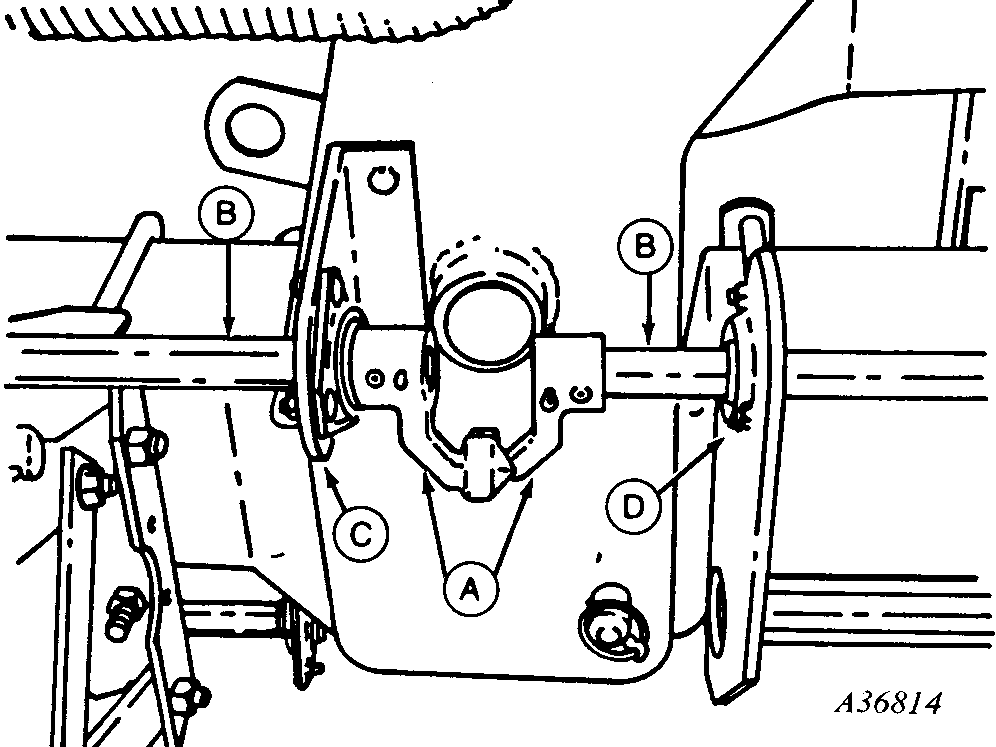

3. Look down on drillshaft coupler (A) and check fore-and-aft alignment. Shafts (B) must align within shown specifications of one another. Reposition bearing support (C) or (D) (if necessary) to align.

Specification

Drillshafts Alignment -Distance 5 mm (3/16 in.)

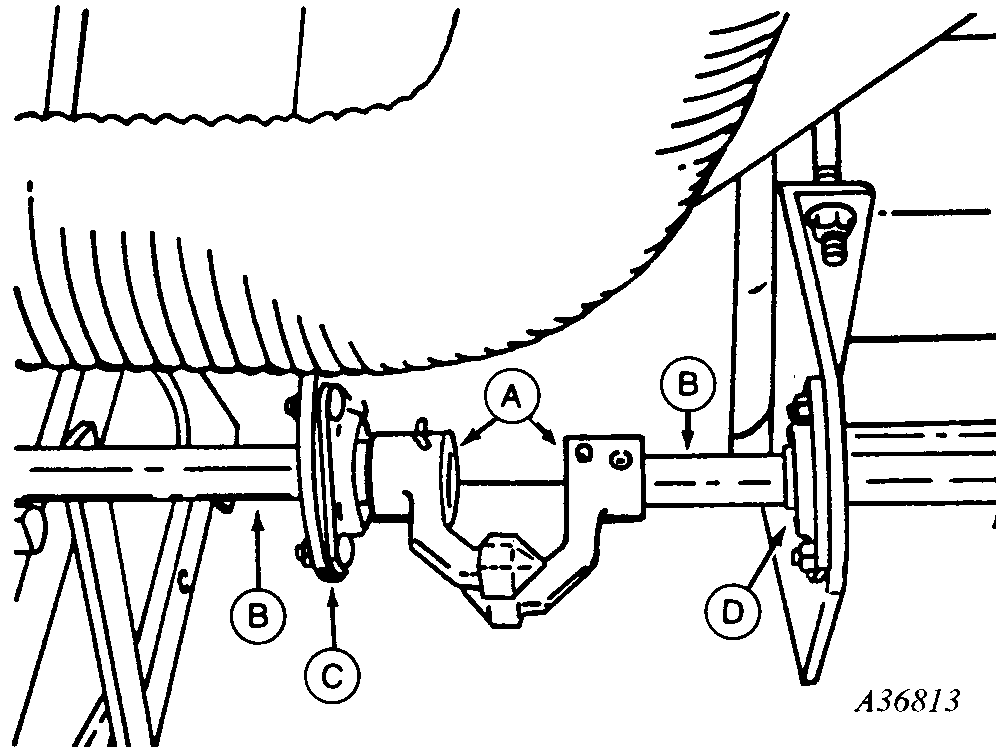

Check drillshaft couplers (A) for vertical alignment. Shaft (B) must align within 5 mm (3/16 in.) of one another.

Repeat for right-hand side of planter.


A-Coupler
B-Shafts
C-Support, Bearing
D-Support, Bearing

A36813
A36814

A54960,Z -19-16MAY95-3/5

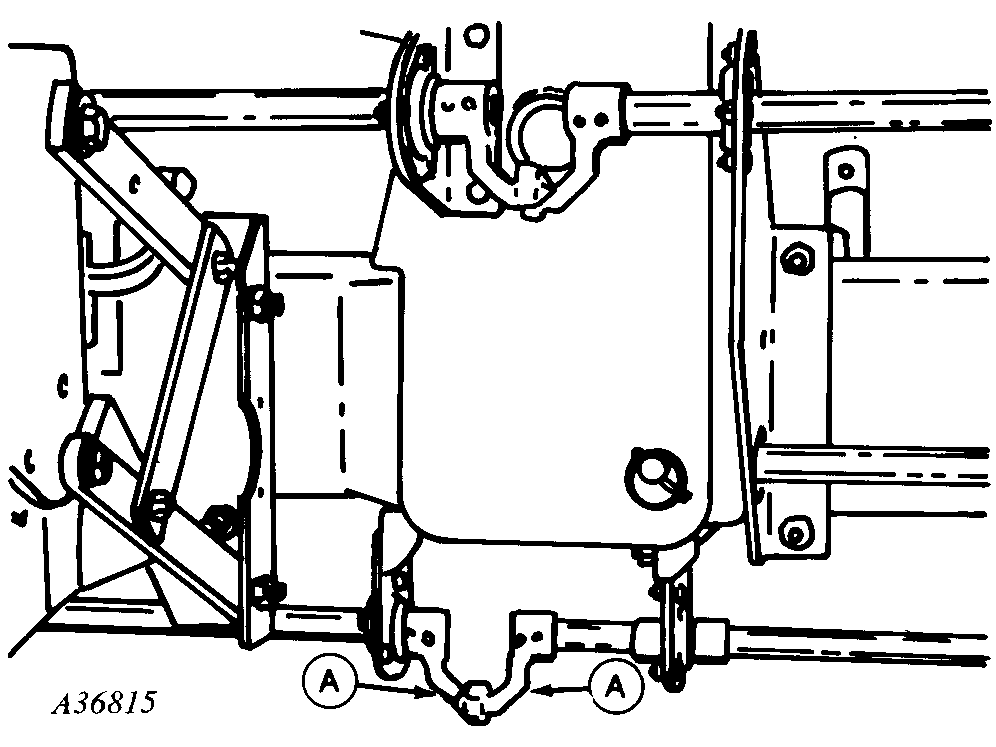

4. Remove countershaft drive couplers (A) from both right- and left-hand sides of planter.

NOTE: Drive chains should be removed from wing-wheel modules if planter will not be converted back to rigid operation.


A-Countershaft Drive Couplers

A36815

A54960,Z -19-16MAY95-4/5

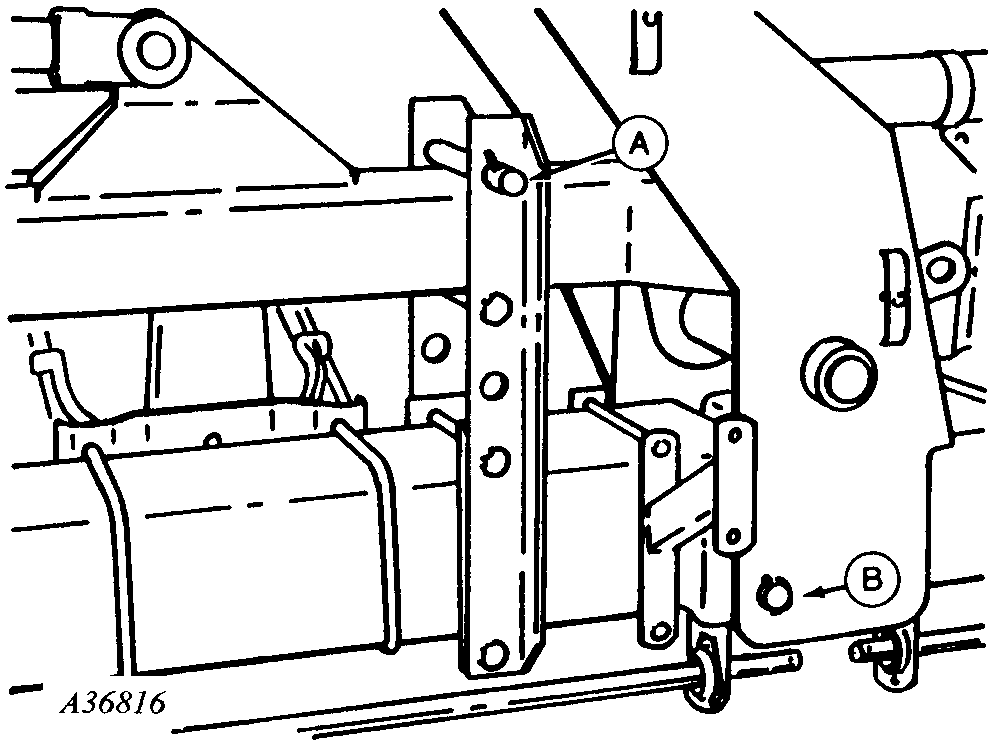

5. Install wing lock-down pin (A) above each lift arm to prevent the entire wing section from moving straight up or down.

Remove pin (B) to allow the wings to flex up and down approximately 5 degrees.


A-Wing Lock-Down Pin
B-Pin

A36816

A54960,Z -19-16MAY95-5/5
