Check Hydraulic Connections

IMPORTANT: Damage to the pump motor may occur if hydraulic hoses are assembled incorrectly. Check the following hydraulic connections before operating the vacuum motor.

1. Be sure hose (A) connected to outlet side of motor is connected to motor return coupler (D).

2. Be sure hose (C) connected to inlet side of motor is connected to control valve (B).

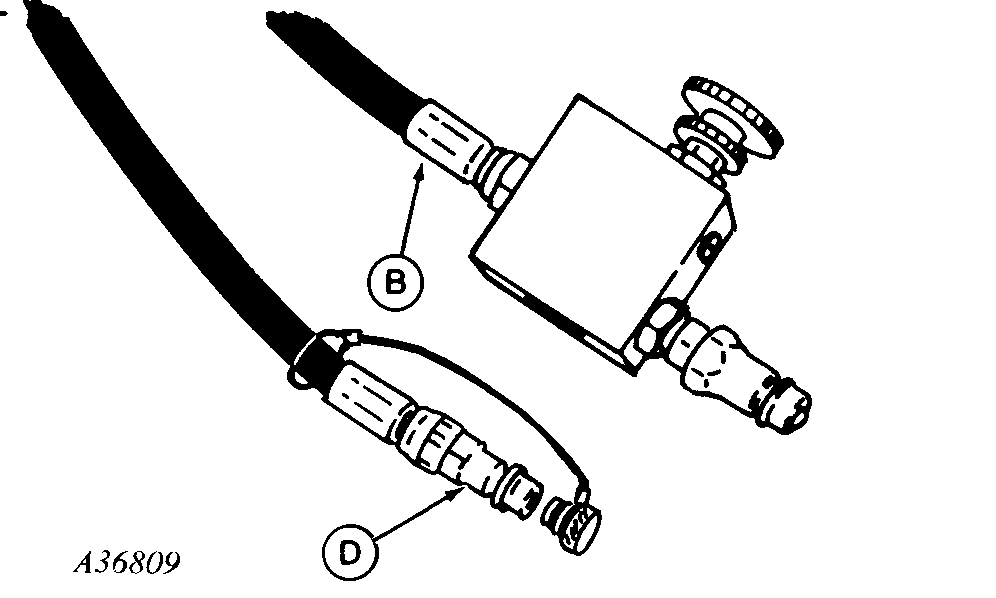

A-Hose
B-Control Valve
C-Hose
D-Motor Return Coupler
