Plateless Seed Hoppers

The metering unit is attached directly to the bottom of the seed hopper by two nuts (A).

A-Nuts

A59058,B -19-11NOV96-1/4

IMPORTANT: Always keep lids on seed hoppers when planting. If lids are left off, dust and dirt can accumulate in the seed metering mechanism, causing excessive wear.

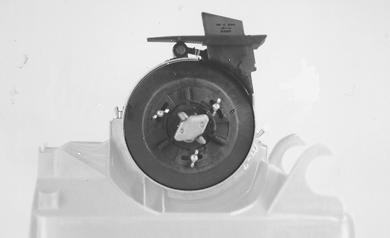

Equip your planter with finger pickup metering units to plant all sizes (or mixed sizes) of corn and sunflower seeds.

A59058,B -19-11NOV96-2/4

Equip your planter with feed cup metering units to plant soybeans, edible beans or sorghum or acid delinted cotton.

A59058,B -19-11NOV96-3/4

Equip your planter with radial bean metering units to plant soybeans.

A59058,B -19-11NOV96-4/4
