Half-Width Planting Drive Disconnect

Allows operator to turn off either half of the planter while on-the-go to plant point, end or fence rows.

AG,OUO6028,874 -19-01OCT99-1/2

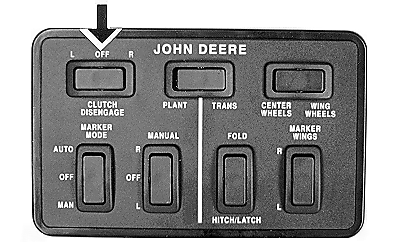

To disengage the left-hand side of the planting drive, press the "L" side of the DRIVE DISCONNECT or CLUTCH DISENGAGE switch.

To disengage the right-hand side of the planting drive, press the "R" side of the DRIVE DISCONNECT or CLUTCH DISENGAGE switch.

IMPORTANT: To resume planting with both sides of the planter, push DRIVE DISCONNECT switch to neutral position.

Press the DRIVE DISCONNECT or CLUTCH DISENGAGE switch to whichever side you wish to disconnect.

AG,OUO6028,874 -19-01OCT99-2/2
