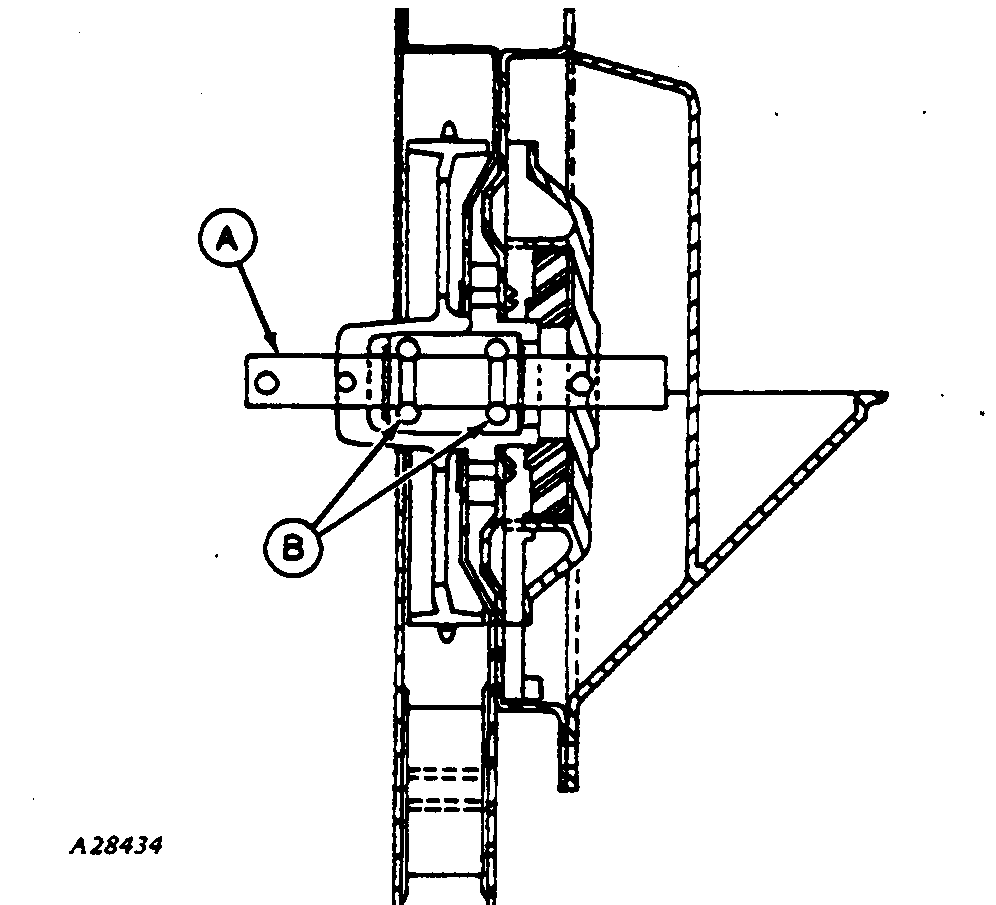

The finger pickup drive shaft (A) has a sealed double row ball bearing (B) designed to give years of dependable service. The drive shaft and bearing may be removed from the belt housing by removing driver wheel and the three face plate screws.
|
|
AG,OUOD007,633 -19-24MAR99-1/1 |
