Vacuum Meter Pump

To operate the vacuum meter, turn the planter flow control valve knob to full open position. Set SCV control knob (A) to motor position (continuous detent). Flow control knob (B) will be used to control vacuum level, start with flow control low and work up.


A-SCV Control Knob
B-Flow Control Knob

H45397

SCV No. II Illustrated

GENOM,OVM,M -19-12MAY93-1/2

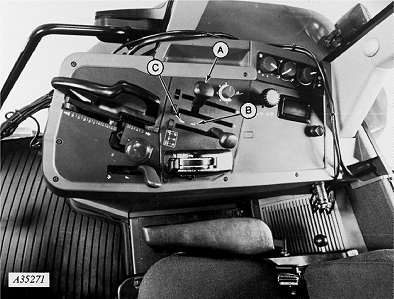

A35271


A-SCV Lever

B-Retract

C-Float



NOTE: If using standard (200 Series) SCV, you must use the vacuum control valve on the planter.

SCV lever (A) should be in retract (B) for running and "float" (C) for off. The motor has an over-running check valve to protect seals if accidentally put in neutral.

GENOM,OVM,M -19-12MAY93-2/2
