Vacuum Level, Baffle Position and Vacuum Meter Brush for Oil Sunflower Seed

For Oil Sunflower, use the seed supplier's information to calculate the seed size in seeds per pound.

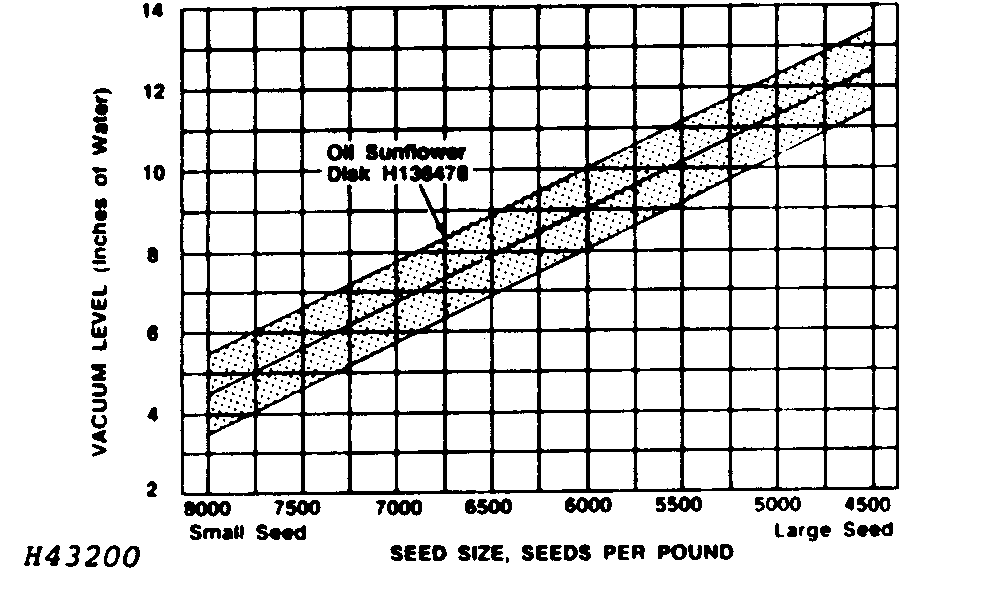

EXAMPLE: If seeds per pound is 5,500. Referring to the chart, the vacuum level should be set at 10 in. when using the Oil Sunflower Disk.

H43200

GENOM,VMSC,AF -19-24FEB97-1/3

IMPORTANT: The 10 in. vacuum level above is an example on how to use the chart. Obtain size in seeds per pound. You must calculate the proper vacuum level for each Oil Sunflower variety.

VACUUM METER BAFFLE: Move tab (A).

For Oil Sunflower, use lower position (B); for Corn, upper position (C).


A-Tab
B-Lower Position
C-Upper Position

H42259

Upper and Lower Baffle Position

GENOM,VMSC,AF -19-24FEB97-2/3

VACUUM METER BRUSH: Use the regular (long) brush.

Talc Lubricant, 1/2 cup.

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

A38261

Regular (Long) Brush

GENOM,VMSC,AF -19-24FEB97-3/3
