Vacuum Level, Baffle Position and Vacuum Meter Brush for Peanuts

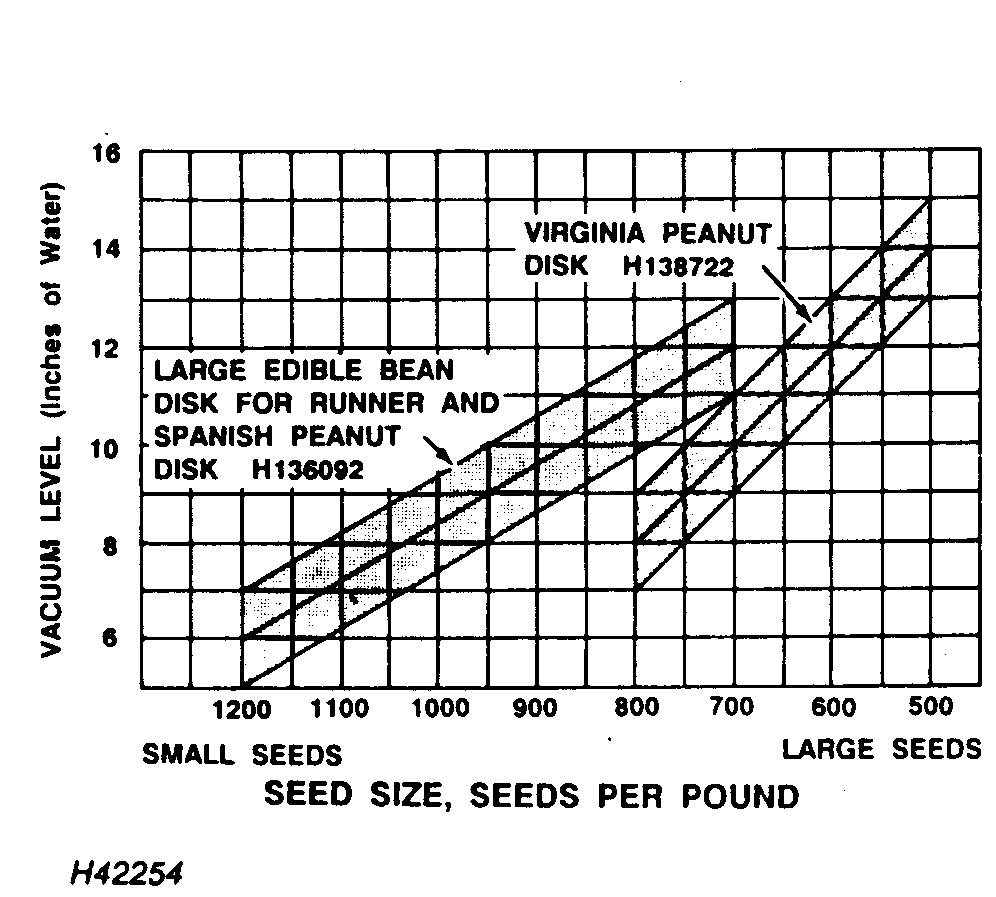

EXAMPLE: If seeds per pound is 800. Referring to the chart, the vacuum level should be set at 11 in., when using the Large Edible Bean Disk for Runner Peanuts or 8 in. when using the Virginia Peanut Disk.

H42254

GENOM,VMSC,W -19-24FEB97-1/3

IMPORTANT: The 11 in. or 8 in. vacuum level above is an example on how to use the chart. Obtain size in seeds per pound. You must calculate the proper vacuum level for each peanut variety.

VACUUM METER BAFFLE: Move tab (A).

Peanuts, upper position (B).


A-Tab
B-Upper Position

H42255

Upper Baffle Position

GENOM,VMSC,W -19-24FEB97-2/3

VACUUM METER BRUSH: Use the short brush.

Talc Lubricant, 2 cups.

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

H41715

Short Brush

GENOM,VMSC,W -19-24FEB97-3/3
