Feed Cup Metering Unit

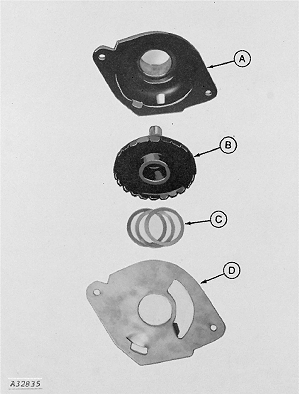

The feed cup metering unit consists of a feed cup housing (A), feed cup (B), washer shims (C) (used with low-rate sorghum metering units only) and corresponding seed guide (D).

Use feed cup metering units to plant the following types of seed:

  • Soybeans
  • 1 Sorghum, Regular-Rate
  • 1 Sorghum, Low-Rate
  • 1 Edible Beans
  • 1 Acid-Delinted Cotton


A-Housing, Cup
B-Cup, Feed
C-Shim, Washer
D-Guide, Seed

A32835

1Available through service parts only.

OM54940,T -19-24FEB97-1/1
