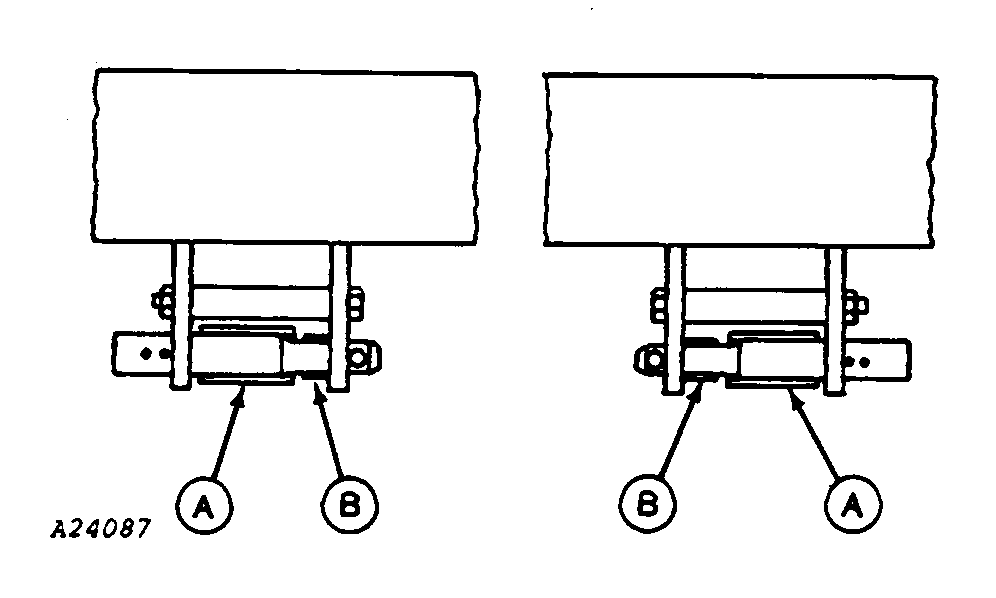

Location of Hitch Pins on Tractor With Category 3N/2 Hitch Without Quick-Coupler

Bushings are required on hitch pins as shown when attaching planter to Tractor with Category 3N/2 Hitch without Quick-Coupler. For parts, see your John Deere dealer.

A-Bushing
B-Bushing

OM54946,20E -19-05MAY97-1/1
