A-Hose
B-Tee Fitting

C-Hose
D-Elbow

E-Hose Tip

F-Hose

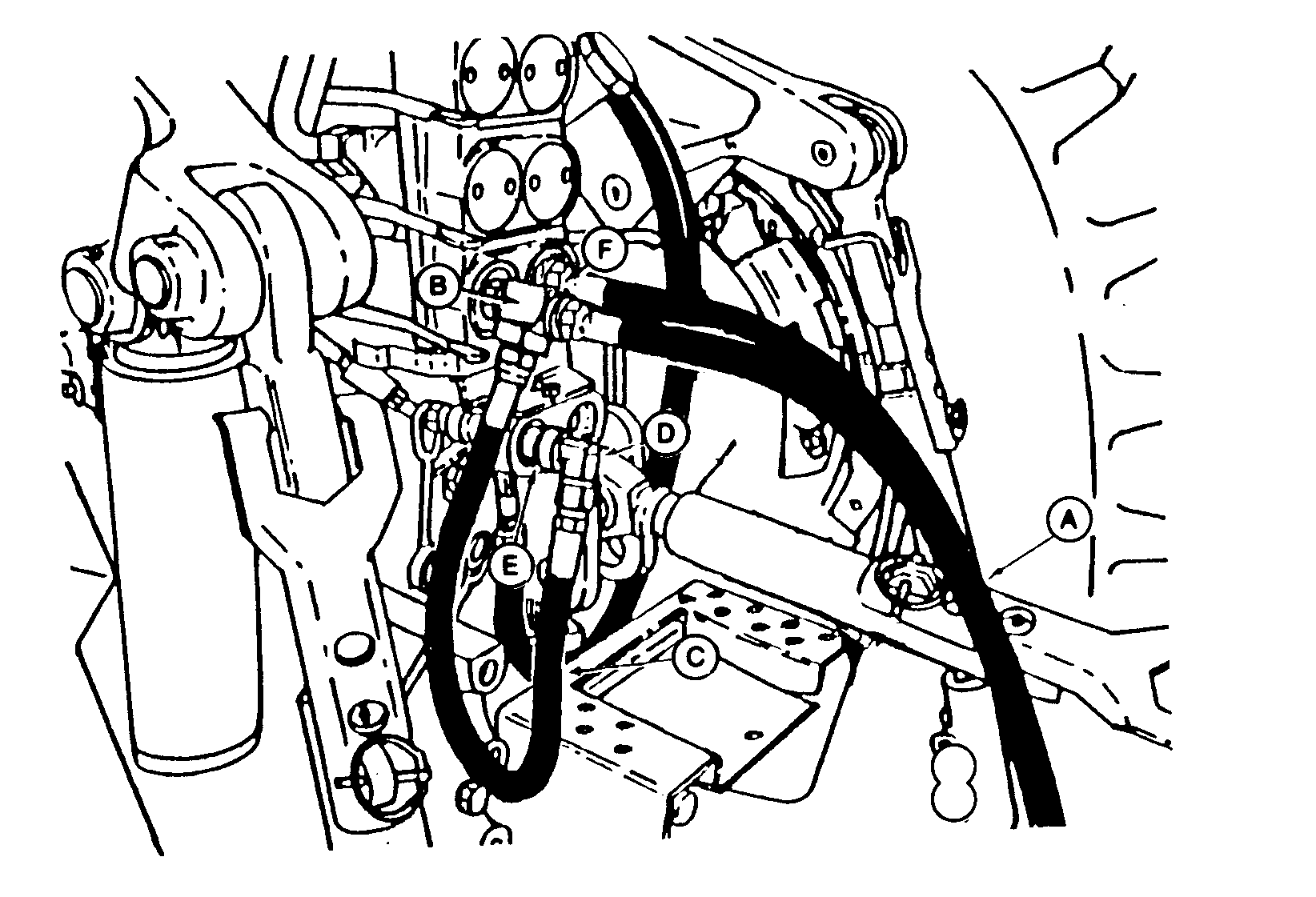

Connect 1524 mm (60 in.) hose (PISTON side of lift assist wheel) (A) to tee fitting (B) in left-hand side of No. 1 SCV coupler.

Attach 610 mm (24 in.) jumper hose (C) to tee fitting (B). Install 90 degree elbow (D) and hose tip (E).

Connect 1524 mm (60 in.) hose (ROD side of lift assist wheel) (F) to right-hand side of No. 1 SCV coupler.
