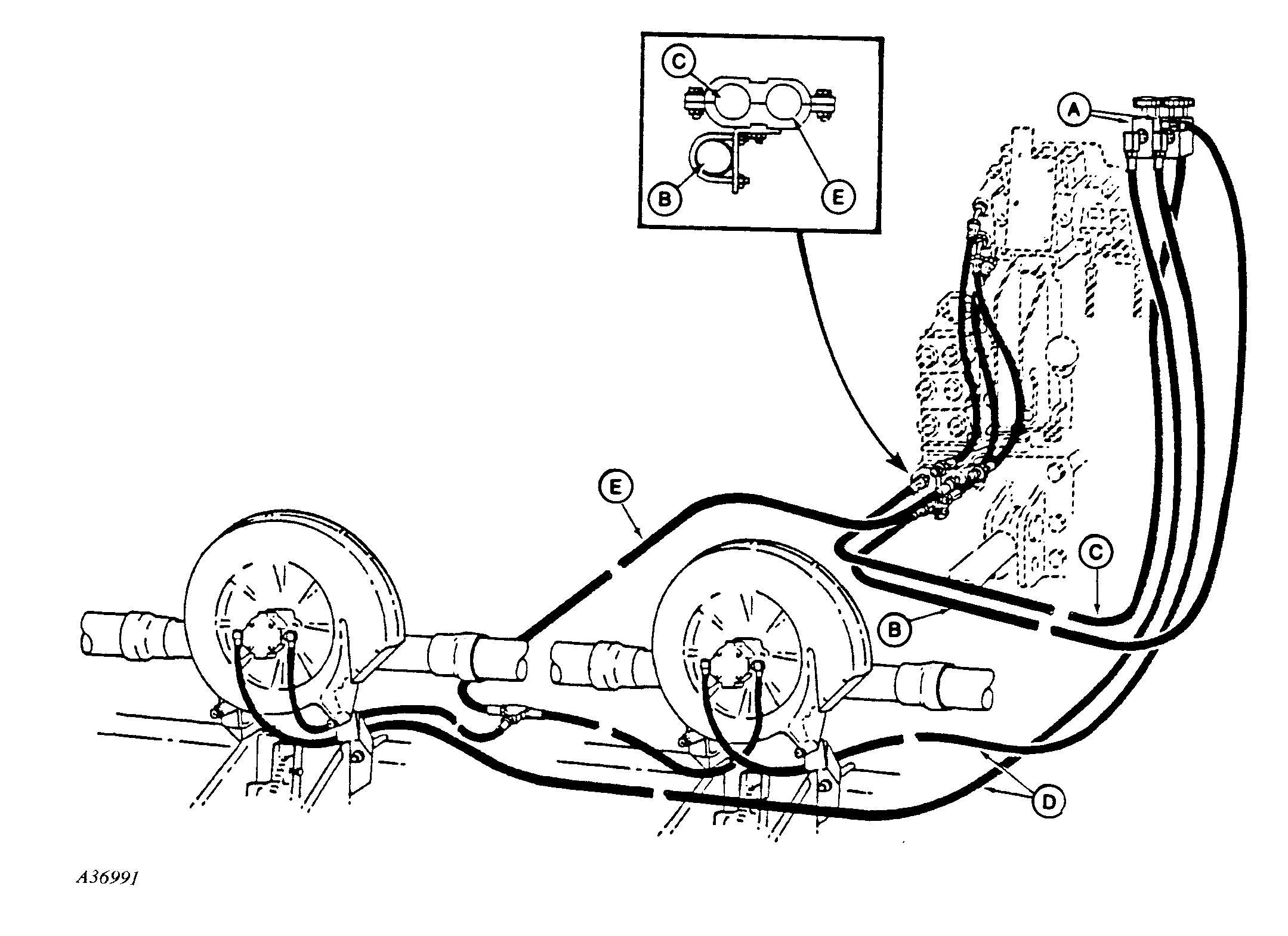

A-Control Valves
B-Load Sensing Hose

C-Pressure Hose

D-Controlled Flow Hoses

E-Return Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating vacuum meter.

1. Connect pressure hose (C) to control valves (A) to left-hand side of power beyond coupler.

2. Connect return hose (E) to right-hand side of power beyond coupler.

3. Connect load sensing hose (B) to bottom smaller coupler on the power beyond.

4. Flow control valves (A) will be used to control vacuum level.

NOTE: Make sure controlled flow hoses (D) from control valve (A) are attached to the left-hand INLET side of blower.

OM54960,P -19-12MAY97-1/1
