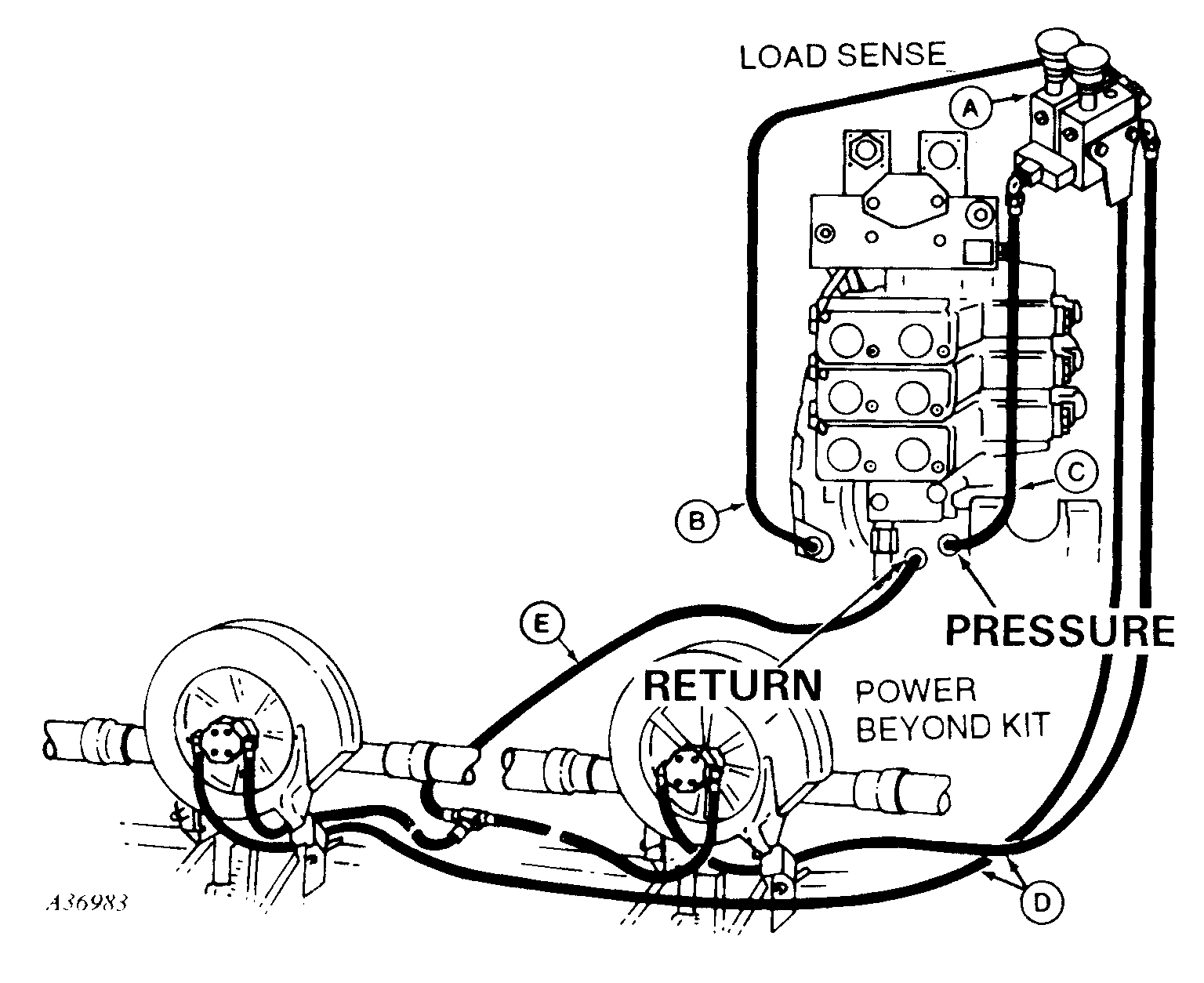

A-Control Valve
B-Load Sensing Hose

C-Pressure Hose

D-Controlled Flow Hoses

E-Return Hose

CAUTION: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly. Replace damaged hoses.

IMPORTANT: Damage to blower motor may occur if hoses are assembled incorrectly. Check hydraulic connections before operating vacuum meter.

1. Connect pressure hose (C) from control valves (A) to right-hand side of power beyond coupler.

2. Connect return hose (E) to motor return coupler.

3. Connect load sensing hose (B) to power beyond coupler.

4. Flow control valves (A) will be used to control vacuum level.
