Replacing Seed Opener Blades and Seed Tube Guard

If opener blade diameter is below shown specifications or if the beveled edge is worn off, the blades should be replaced. Also replace blades if damage caused by rocks or stumps results in an irregular seed furrow.

Specification

Opener Blade -Diameter 356 mm (14 inches)

If opener blades must be replaced for any reason, be certain they are replaced with the correct amount of blade contact. To replace blades, proceed as follows:

OM56586,120X -19-08MAY96-1/5

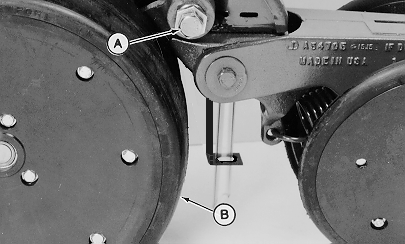

1. Remove cap screw (A) and gauge wheel (B) from pivot shaft making certain to leave inside washers in place.


A-Cap Screw
B-Gauge Wheel

A38372

OM56586,120X -19-08MAY96-2/5

2. (Planting unit equipped with rotary scraper) Pull front engagement pin outward, disengage it from the shank panels, rotate and insert scraper (A) between opener blades.

3. Remove hub cap (B).


A-Scraper
B-Hub Cap

A38373

OM56586,120X -19-08MAY96-3/5

4. Remove nut and washer (A) from outside of bearing, disk blade and hardened washers from shaft.

NOTE: Nut on left-hand side of opener has left-hand thread.


A-Nut and Washer

A38374

OM56586,120X -19-08MAY96-4/5

5. To properly replace blade assembly, add or remove hardened washers (C) behind blade bearing to obtain shown specifications of blade edge contact at point (A).

Specification

Blade Edge Contact -Length 38-64 mm (1-1/2-2-1/2 in.)
Use following procedures to verify:

a. Slide a business card from the blade top, and one from the blade bottom. The distance between the two cards is "blade contact". These dimensions should measure at shown specifications.

b. If dimensions do not meet required specifications, rotate blades and re-measure.

c. If necessary use hardened washers (C) to obtain specifications.

Do not replace opener blades just because they may be slightly warped.

d. Ensure blades do not contact the shank or seed tube.

IMPORTANT: In order to maintain the blades centered on the shank, equal number washers should be used side-to-side within ±3.

Blades may touch the seed tube guard but not bind it.

NOTE: Inserting a piece of paper at point (A) will also help verify correct blade edge contact dimension.

Replace blade, bearing washer, nut and cap.

NOTE: Nut on left-hand side of opener has left-hand thread.

If seed tube guard is excessively worn, replace by removing pins (B) and guard. Install new guard and pins.

When assembled, the blades should turn with minimal resistance.

A38375


A-Contact Point
B-Pins
C-Hardened Washers

OM56586,120X -19-08MAY96-5/5
