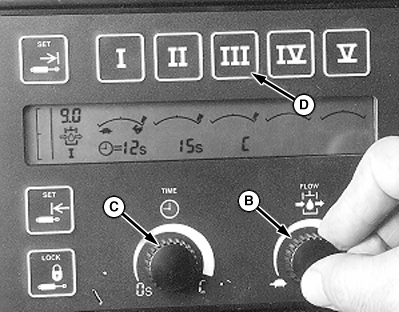

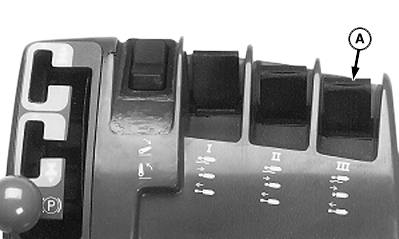

Set Valve ControlsSCV I: Press touch control switch I to set up markers. Adjust flow control knob (B) for flow. (cylinders are orificed). Adjust time DETENT knob (C) to 6 seconds and readjust in field for proper time to extend and retract. SCV II: Press touch control switch II to adjust fold. Adjust flow control knob (B) for flow. Adjust time detent knob (C) to 20 seconds, and readjust in field as required. SCV III: Press touch control switch III (D) to set flow to hydraulic vacuum motor. Adjust flow control knob (B) to desired vacuum. Start with low flow setting at 2.0 on display and adjust for correct vacuum level after seeds are on the disk. Set time DETENT knob (C) to CONSTANT. Push tractor control lever (A) to detent and release to operate motor. To turn off hydraulic vacuum motor place control in FLOAT. NOTE: For 12-row narrow planters equipped with wing lift kits: The wing lift cylinders may be plumbed directly to tractor SCV or, if planter is equipped with row markers, to planter marker sequence valve. |
|
| 12-Row Planter | |||
|---|---|---|---|
| SCV # | FUNCTION | FLOW | DETENT (TIME) |
| 1 | Markers | Start at 5.0. Adjust for lift time | 6 seconds or as required for full extend/retract |
| 2 | Fold | Start at 5.0-10. Note: Cylinders are orificed. | 20 seconds or as required for full extend/retract |
| 3 | Vacuum Motor | Start at 2.0 and adjust as required to obtain desired vacuum pressure. | Constant (C) |
| Hitch | Raise/Lower lift assist when tied to hitch | Adjust for rate of drop | |
OM56586,25K -19-08MAY98-1/2 |
| 16-Row Planter | |
|---|---|
| SCV # | FUNCTION |
| 3 SCV's With Power Beyond: | |
| 1 | Markers |
| 2 | VRD |
| 3 | Fold Circuit |
| Power Beyond | Vacuum 1 and 2 |
| 3 SCV's Without Power Beyond: | |
| 1 | Markers |
| 2 | VRD and Vacuum 1 and 2 |
| 3 | Fold Circuit |
| 4 SCV's With Power Beyond: | |
| 1 | Markers |
| 2 | Vacuum 1 |
| 3 | Vacuum 2 |
| 4 | Fold Circuit |
| Power Beyond | VRD |
| 4 SCV's Without Power Beyond: | |
| 1 | Markers |
| 2 | Vacuum 1 and 2 |
| 3 | VRD |
| 4 | Fold Circuit |
| 5 SCV's: | |
| 1 | Markers |
| 2 | Vacuum 1 |
| 3 | Vacuum 2 |
| 4 | VRD |
| 5 | Fold Circuit |
