Rotary Scraper

The spring-loaded rotary scraper (A) is recommended for moist, sticky soils to assist the depth gauging wheels in keeping the TRU-VEE ™ opener blades clean.

NOTE: The scraper is not recommended in dry abrasive soil conditions.

At the start of the season and periodically during the season, inspect the scraper insert for wear.

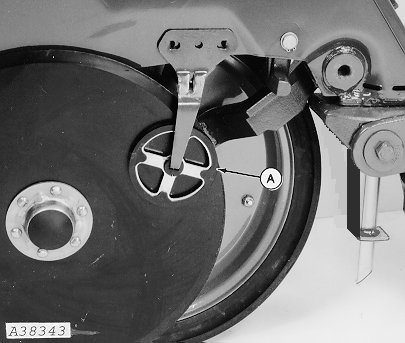

A-Rotary Scraper

TRU-VEE is a trademark of Deere & Company.

OM56594,95C -19-24FEB97-1/1
