Vacuum Level, Baffle Position and Vacuum Meter Brush for Corn Seed

For Corn, use the seed corn supplier's information to calculate the seed size in seeds per pound.

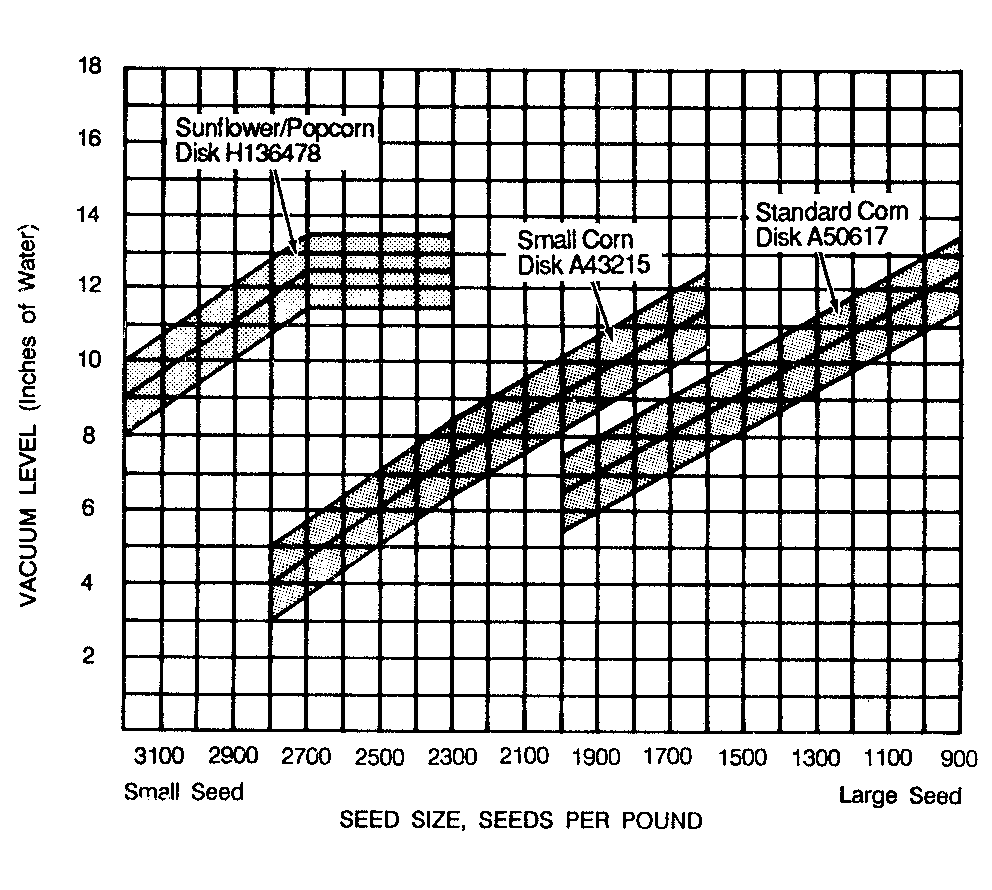

EXAMPLE: If the bag label indicates there are 85,000 kernels in the bag and bag weight is 45 lbs., seed size is 1889 seeds per pound (85,000 divided by 45). Referring to the chart, vacuum level should be set at 7 in. when using Standard Corn Disk or 10 in. when using Small Corn Disk for a seed size of 1889 seeds per pound.

A41053

OM60113,80A -19-25APR97-1/3

IMPORTANT: The 7 in. or 10 in. vacuum level above is an example on how to use the chart. You must calculate proper vacuum level for each corn variety.

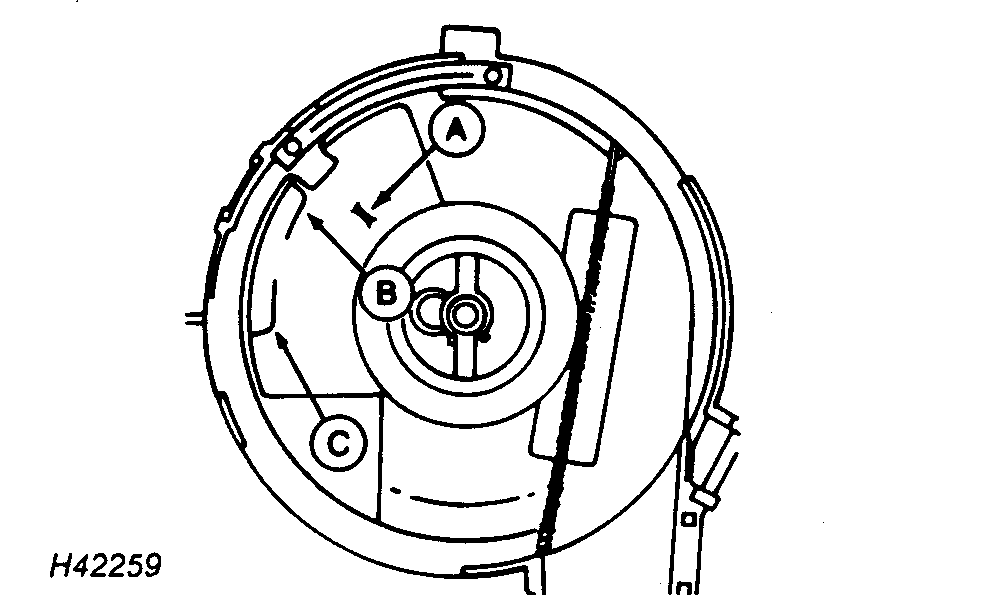

VACUUM METER BAFFLE: Move tab (A).

For Sunflower, lower position (B), for Corn, upper position (C).


A-Tab
B-Lower Position
C-Upper Position

H42259

Upper and Lower Baffle Position

OM60113,80A -19-25APR97-2/3

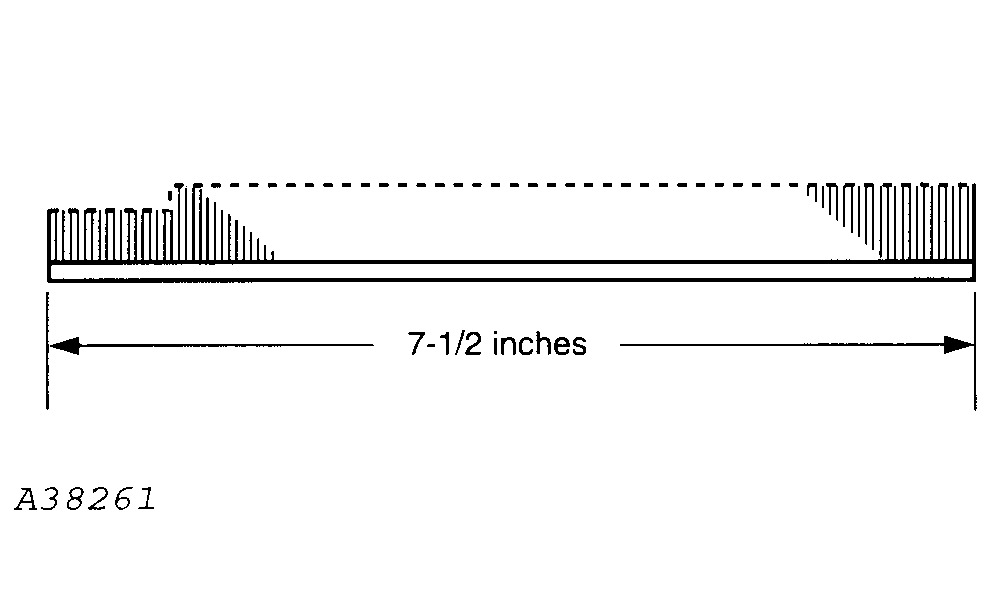

VACUUM METER BRUSH: Use the regular (long) brush.

Talc Lubricant, 1/2 cup.

NOTE: If sweet corn double eliminator has been installed, loosen set screw in cam nut and rotate cam nut to move tip of eliminator AWAY from center of meter housing as far as possible.

A38261

Regular (Long) Brush

OM60113,80A -19-25APR97-3/3
