Drag Closing Attachment Adjustments

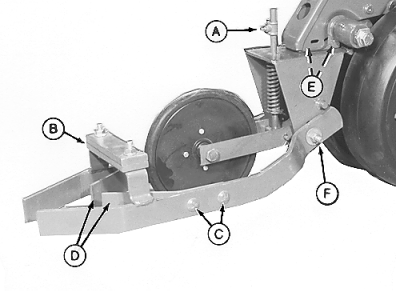

1. Loosen set screw (A) and move depth stop to limit packer wheel travel. Tighten set screw.

2. The drag closing system is supplied with two weights (B) as shown. If required, more weight may be added by removing bolts and attaching a second weight (order from parts) under the cross strap and securing with longer bolts (not included).

3. Inner drags may be adjusted by loosening bolts (C) and sliding inner drags (D) either up or down and tighten bolts. This increases or decreases the amount of soil movement.

4. Adjust drag assembly angle to center over row by loosening bolts (E), repositioning drag assembly and tighten bolts.

5. Loosen nut (F) and adjust the bolt up or down to compensate for changes in planting depths to make drags level with ground.

A-Set Screw
B-Weight
C-Bolts
D-Inner Drags
E-Bolts
F-Nut
