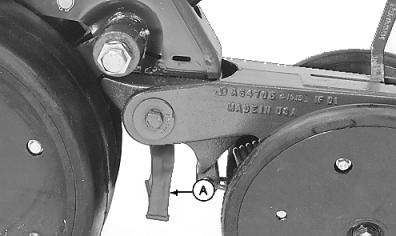

175 mm (7 in.) Insecticide Band Spreader (Front Mounted)The 175 mm (7 in.) insecticide band spreader (A) is designed to apply a band of granular insecticide approximately 175 mm (7 in.) wide on top of the ground when planting. See your John Deere dealers copy of the Predelivery Instructions for assembly instructions. IMPORTANT: Some insecticides are toxic if it comes into direct contact with the seed. Consult your chemical supplier for the proper location to apply your chemical. |
|
OM62502,105A -19-08MAY98-1/1 |
