Clean Vacuum Meter Drive

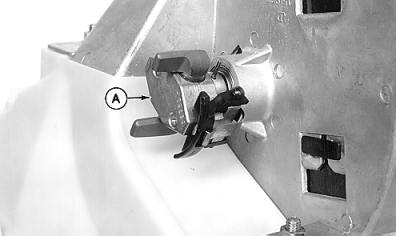

Drive (A) can stick in dusty conditions. Lubricate with John Deere Multipurpose Spray Lube, TY6350.

Prior to use season, disassemble drive, clean and repack with TY6333 grease.

Apply T43512 LOCTITE ® to screw threads and assemble drive (A).


A-Drive

A44734

LOCTITE is a registered trademark of Loctite Corp.

OM62502,125E -19-08MAY98-1/1
