1710
|

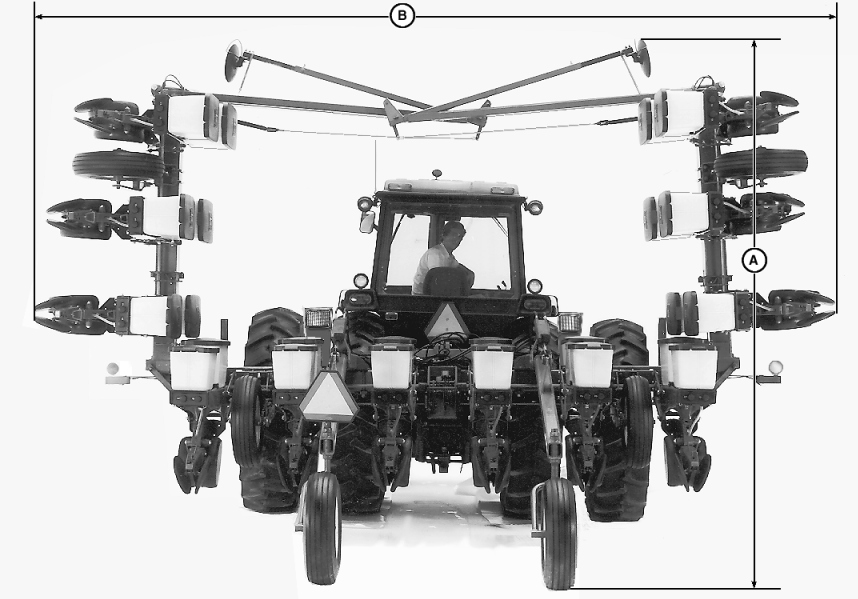

| LEGEND: | |||
|---|---|---|---|
| Planter | B | Dimension | A |
| 8-Row Narrow | 5.8 m (18'11") | Markers in Transport | Markers Removed |
| 3.7 m (12'2") | 3.3 m (10'9") | ||
| 10-Row Narrow | 6.3 m (20'6") | 3.7 m (12'2") | 3.3 m (10'9") |
| 12-Row Narrow | 6.3 m (20'6") | 4 m (13'0") | 3.5 m (11'6") |
|
|
when moving or operating this machine near electric lines to avoid contact. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care
OM62502,150A -19-08MAY98-1/1 |
