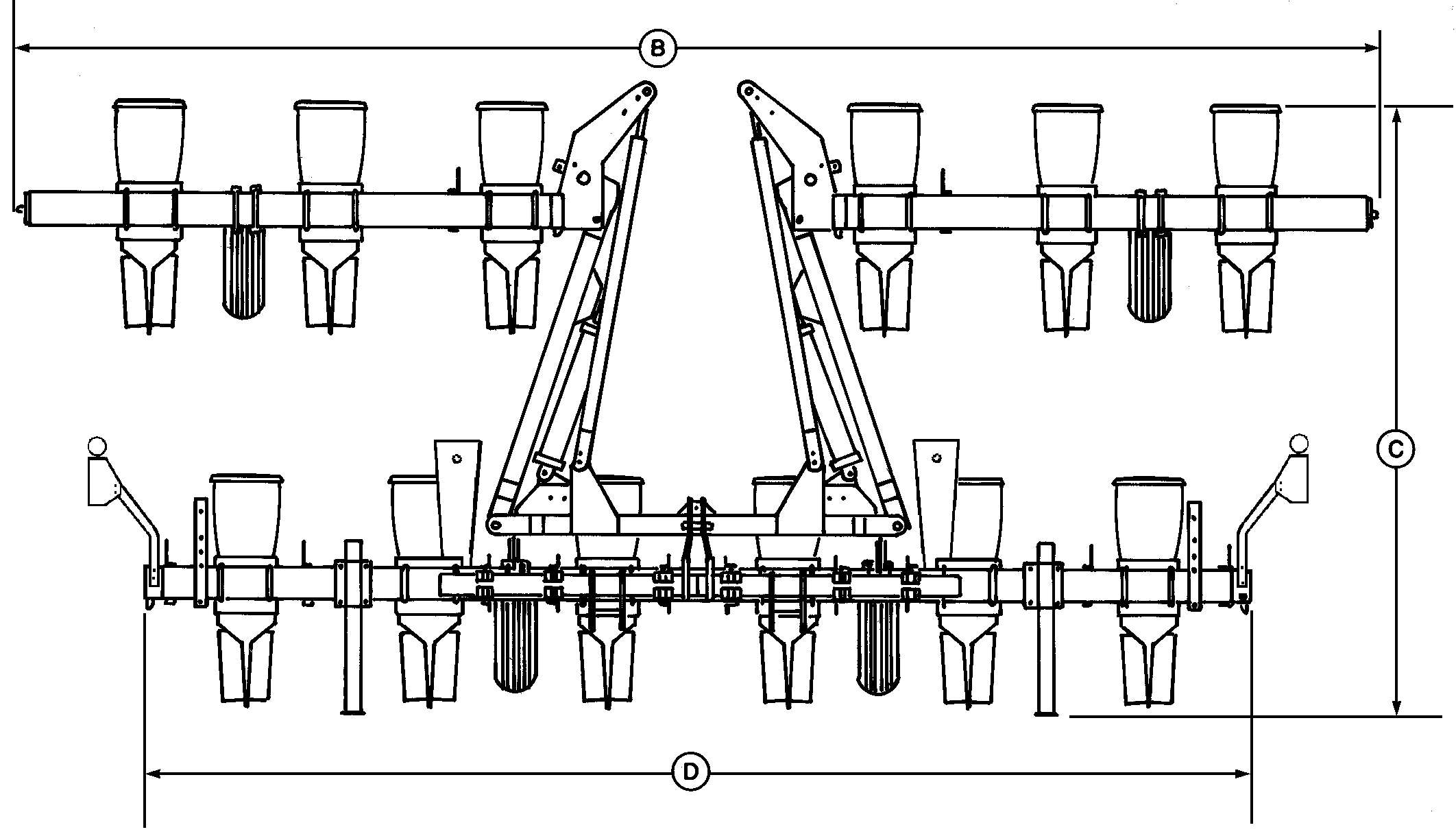

To assist you in transporting or storing your planter, see diagram above, if applicable, for overall dimensions of your planter. |
| LEGEND: | Dimension "B" | Dimension "C"a (W/O Markers) | Dimension "D" |
|---|---|---|---|
| 12-Row, 914 mm | 605 cm (238 in.) | 410 cm (161 in.) | 594 cm (234 in.) |
| (36 in.) | 6.1 m (19 ft. 10 in.) | 4.1 m (13 ft. 5 in.) | 5.9 m (19 ft. 6 in.) |
| 12-Row, 965-1016 mm | 284 in. (23 ft. 8 in.) | 410 cm (161 in.) | 630 cm (248 in.) |
| (38-40 in.) | 721 cm (7.2 m) | 4.1 m (13 ft. 5 in.) | 6.3 m (20 ft. 8 in.) |
| aOn 4960 Tractors with 18.4R-46 rear tires with hitch pin 107 cm (42 In.) off ground. | |||
|
|
when moving or operating this machine near electric lines to avoid contact. |
CAUTION:
Serious injury or death can result from contact with electric lines. Use care
OM62502,150E -19-08MAY98-1/1 |
